15 Zygomatic and zygomaticomaxillary complex (ZMC) fractures

10.1055/b-0037-143403

15 Zygomatic and zygomaticomaxillary complex (ZMC) fractures

DAVID E. MORRIS AND MIMIS N. COHEN

INDICATIONS

Functional deficit resulting from coronoid impingement (limitation in ability to open mouth)
Treatment/prevention of contour deformity caused by skeletal malposition (malar projection, alteration in facial width, globe position) (Figure 15.1)

Figure 15.1 Untreated right zygomaticomaxillary complex (ZMC) fracture. **(a)** This patient presented with deformities associated with untreated right ZMC and frontal bone fractures: asymmetric facial width, posteroinferiorly positioned orbital rim and malar eminence, globe malposition, malposition of eyelids. **(b)** Associated computed tomographic (CT) findings.

Table 15.1 Equipment for open reduction without fixation of zygomatic arch fracture (Gillies approach)
Basic soft tissue instruments (#15 blade, Adson forcep, Senn retractor, needle driver) Urethral sound or other long-handled blunt elevator Padded eye shield (for postoperative splint)

Table 15.2 Equipment for open reduction with internal fixation of zygomaticomaxillary complex fracture
Tray with soft tissue instruments sufficient for orbital approach and intraoral approaches to facial skeleton Carroll-Girard screw 28-gauge wire Plating system containing 1.5 and 2.0 plating options with low-profile plates for periorbital region Alloplastic implant or instruments to harvest autogenous bone (rib, calvarium) for orbital floor reconstruction

INTRODUCTION

The zygoma is a spatially complex bone that articulates with the frontal bone, maxilla, temporal bone, and sphenoid. Zygomaticomaxillary complex (ZMC) fractures that occur with lower-velocity blunt impact often occur at these articulations. Spatially, they displace the ZMC with minimal comminution (Figure 15.2). Higher-velocity injuries (e.g., gunshot wounds) often cause comminution with more complex fracture patterns (Figure 15.3). By definition, given the anatomy of the zygoma, a ZMC fracture must affect the orbital floor or lateral orbital wall. Simultaneous reconstruction of the orbital floor is often indicated. ZMC fractures may cause deformity in facial width, orbital rim step-offs, cheek projection, and globe position. Medial displacement of the temporal process may cause trismus through impingement on the coronoid.

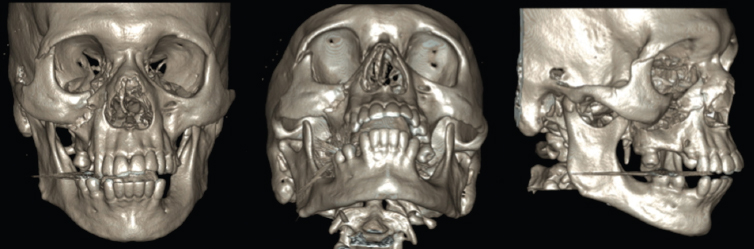

Figure 15.2 Low-energy ZMC fracture. CT findings are typical of those associated with a low-velocity blow: fractures or separations noted at the suture lines and three-dimensional displacement of the ZMC as a single segment. In this case, the ZMC is rotated medially and impacted along the zygomaticomaxillary suture line.

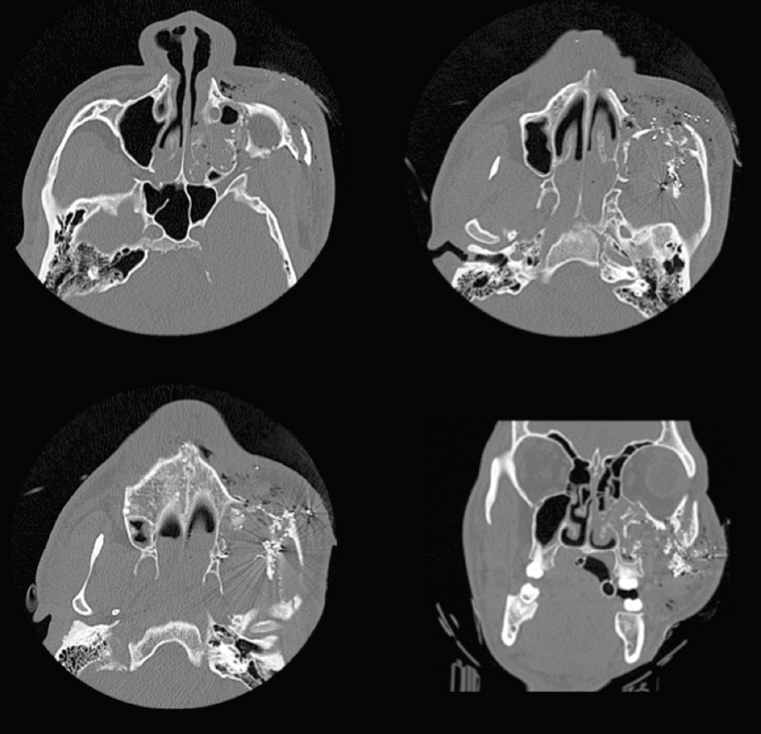

Figure 15.3 High-energy ZMC fracture: comminuted left ZMC fracture due to gunshot wound. Note foreign body and fracture fragments in the region of the coronoid process.

Direct impact to the lateral face may cause an isolated depressed zygomatic arch fracture. Significant displacement may result in loss of lateral facial width or trismus.

Treatment of zygoma fractures is generally: nonoperative (for nondisplaced fractures), reduction without fixation (for isolated zygomatic arch fractures) and exploration of the zygoma and articular processes with open reduction and internal fixation (ORIF). There remain several aspects of controversy in the latter treatment: the number of fracture sites that must be explored, sites requiring fixation for adequate stability, and ideal surgical incisions to achieve satisfactory exposure. This chapter presents our general approach, ¹ representing our interpretation of the literature.

PREOPERATIVE MARKINGS

Reduction of depressed zygomatic arch fracture (Figure 15.4)

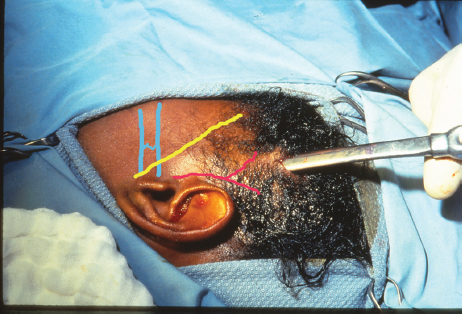

Figure 15.4 Reduction of isolated zygomatic arch fracture through a Gillies approach. Skin markings (overlay) are made designating the position of the arch (blue), course of the temporal branch of the facial nerve (yellow), and by palpation, the superficial temporal artery (red). Avoiding the last two structures, a 1-cm incision is made anterosuperior to the root of the helix.

The position of the zygomatic arch and presumed fracture line is based on a computed tomographic (CT) scan and gentle palpation.
Course of temporal branch of facial nerve is determined.
Course of superficial temporal artery is determined (by palpation).
Avoiding items 2 and 3 above, a 1-cm long incision is designed within hair-bearing scalp. This generally originates superior and anterior to root of the helix of ear or just beyond.
