Transparietal/Transtemporal Distraction for Sagittal Craniosynostosis



Transparietal/Transtemporal Distraction for Sagittal Craniosynostosis


Kristen Klement

Arlen Denny





ANATOMY



  • Cranial vault is a series of bones with junctions that constitute the cranial sutures (FIG 1).


  • The sutures are syndesmoses or a joint between cranial bones.

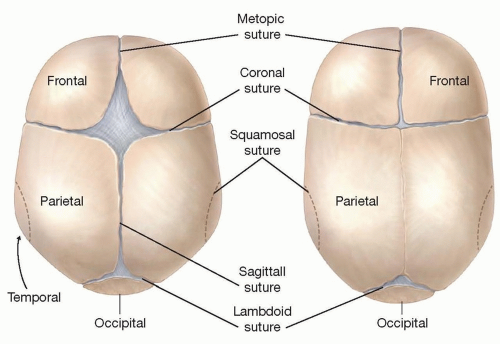

    FIG 1 • Anatomy of normal skull bones and suture (left) and premature fusion of sagittal suture with resultant scaphocephaly (right).



    • The major cranial sutures are metopic, sagittal, coronal, lambdoid, and squamosal.


  • Skull growth is normally perpendicular to sutures.



    • Premature fusion results in compensatory growth parallel to the affected suture.


    • Premature fusion of the sagittal suture results in scaphocephaly.


PATIENT HISTORY AND PHYSICAL FINDINGS



  • History



    • Developmental delays and learning disabilities


    • Behavioral issues


    • Signs of elevated intracranial pressure:



      • Chronic headaches


      • Papilledema


      • Color visual impairment progressing to optic nerve atrophy


  • Examination



    • Expanded anteroposterior dimension due to compensatory growth at the active sutures


    • Narrowed bitemporal distance


    • Sagittal ridge


    • Frontal bossing due to fusion of the anterior sagittal suture and compensatory growth by coronal and metopic sutures


    • Occipital bulge due to fusion of the posterior sagittal suture and compensatory growth by lambdoid sutures

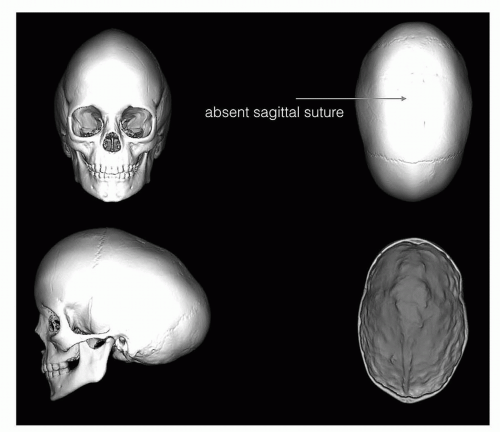

FIG 2 • CT scan with 3D reconstruction of the head demonstrating premature fusion of the sagittal suture with scaphocephaly with expanded anteroposterior dimension, narrowed bitemporal distance, sagittal ridge, frontal bossing, and occipital bullet.


IMAGING



  • Computed tomography scanning of the head with 3D reconstruction (FIG 2) shows the classic findings in premature fusion of the sagittal suture:



    • Expanded anteroposterior dimensions


    • Narrowed bitemporal dimension


    • Sagittal ridge at the site of the absent suture


    • Frontal bossing


    • Occipital bulge


SURGICAL MANAGEMENT


Preoperative Planning



  • Review CT scan preoperatively.


  • Plan osteotomy patterns.


  • Identify skull defects or sinus pericranium which may require changes in the planning.
