Rotationplasty of the Lower Extremity
Samer Attar
Robert J. Steffner
Terrance Peabody
DEFINITION
Rotationplasty of the lower extremity is a reliable and durable reconstructive option in the setting of bone loss in the lower extremity due to tumor, infection, or trauma.
With resection of the bone around the knee joint, the rotated tibia is attached to the remaining femur.
With appropriate preoperative education and proper patient selection, it is a functional alternative to an above-knee amputation or endoprosthetic reconstruction—especially in the skeletally immature patient.
ANATOMY
The distal limb is rotated 180 degrees. This technique permits the rotated ankle joint to function as a knee joint for prosthetic fitting (FIG 1).
The stump can fit into a modified below-knee prosthesis that is end-bearing, as opposed to ischial-bearing prostheses for above-knee amputations.
PATIENT HISTORY AND PHYSICAL FINDINGS
Historically, rotationplasty has been described in the management of femoral bone loss from tuberculosis, proximal femoral focal deficiency, and sarcomas.1,2
Indications for rotationplasty
Congenital bone loss or deficiency
Sarcomas of the lower extremity
Trauma
Failed arthroplasty
Skeletally immature patient or active adult patient
Contraindications
Pre-existing nerve damage or ankle stiffness
Sciatic nerve involvement in tumor requiring its resection
Physical examination
The soft tissues proximal and distal to the area of tumor must be intact and free of disease.
The ankle joint must be inspected for any contractures or limitations to motion.
The dorsalis pedis and posterior tibialis pulses must be inspected for flow.
Ankle extension, ankle flexion, and extensor hallucis longus motor strength must be documented.
A sensate foot with 5/5 motor strength and full ankle range of motion is ideal.
IMAGING
Limb lengths of both lower extremities are obtained.
Bone age should be approximated as the nonoperative limb will continue to grow.
In malignant bone tumors about the knee undergoing resection, the distal femoral and proximal tibial growth plates are usually removed.
When the patient reaches skeletal maturity, the rotated tibiotalar joint of the operative limb should be located at the center of rotation of the knee of the nonoperative limb.
The projection of growth of the nonoperative limb must be taken into consideration at the time of surgery. Therefore, in a skeletally immature individual, the operative leg must be longer than the nonoperative femur.
In the setting of sarcoma, magnetic resonance imaging determines where to resect the femur with an adequate margin, whether the joint is contaminated, and whether vascular structures are contaminated.
If there is joint invasion, an extra-articular resection should be performed.
If tumor infiltrates or encases vessels, vascular resection with anastomosis should be considered.
The tibial and peroneal nerves should be intact and free of disease as they will be required to power ankle motion.

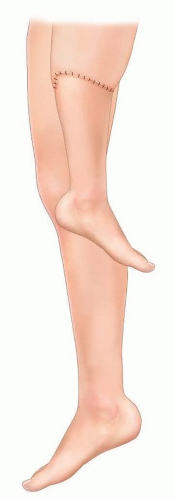

 FIG 1 • Limb after rotationplasty, allowing the rotated ankle joint to function as a knee joint for prosthetic fitting. |
SURGICAL MANAGEMENT
Operative intervention must focus on the creation of appropriate flaps, wide resection of bone and soft tissue margins, and stable fixation of the remaining femur to the rotated tibia.
Preoperative Planning
Extensive discussions with the patient and family are essential prior to performing a rotationplasty. The options of an amputation vs internal prosthesis must be reviewed in addition to explaining their respective risks/benefits.
Imaging is reviewed to determine levels of resection of the femur and tibia in order to:
Achieve a sound oncologic margin
Account for a projected center of rotation of the rotated tibiotalar joint to be at the same level of the nonoperative knee when the patient reaches skeletal maturity
Positioning
The patient is placed supine on a radiolucent table.
The entire lower extremity from the pelvis to the foot must be prepped and draped.
This setup provides vascular access and enables internal fixation to the level of the hip joint if needed.
Intraoperative fluoroscopy is recommended in order to aid placement of hardware.
Approach
The skin incision must be planned to accommodate the disproportion between thigh and calf circumference.
Circumferential incisions are commonly made at acute angles to each other to account for this thigh/calf discrepancy (FIG 2).
 FIG 2 • Intraoperative outline of incision in the right lower extremity of a pediatric patient with a distal femur osteosarcoma. |
TECHNIQUES
▪ Incision
Skin and subcutaneous tissues are incised and raised as flaps along the circumferential thigh and calf tissues and the longitudinal line connecting them (TECH FIG 1A,B).

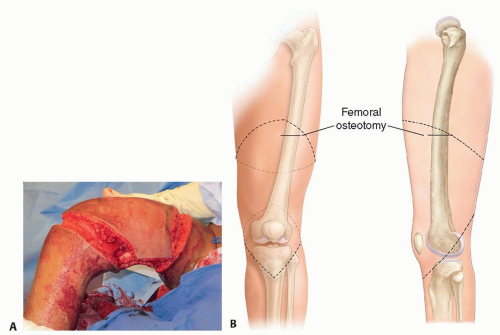

 TECH FIG 1 • A. Incision with thick skin flaps. Note the circumferential incisions placed at oblique angles in order to accommodate the difference in thigh and calf diameter during rotation and closure of the wounds. B. The rhomboid incision should have an anterior axis that is about 5 to 10 cm longer than the intended length of the bone resection. The bone resection itself should be located at the proximal and middle thirds of the more proximal incision. |
▪ Nerves
The peroneal nerve is identified deep to the biceps tendon coursing laterally around the proximal fibula. It is dissected free of the surrounding soft tissue and followed proximally into the posterior thigh until its bifurcation with the tibial nerve (TECH FIG 2A).
The tibial nerve is traced distally through the popliteal space and distal to the proposed osteotomy site. It is also dissected proximally until the sciatic nerve is identified and traced above the level of the proposed femoral osteotomy.Related posts:
