Systemic immunomodulators that are used to treat dermatologic disorders include interferons, intravenous immune globulin, and a variety of agents that target specific proteins (e.g. TNF, IL-17) involved in disease pathogenesis. The latter group of medications, which are referred to as “biologic” agents, work via several mechanisms including altering activation of T cells and their differentiation into Th1, Th2, or Th17 cells; blocking cytokines, their receptors, or their intracellular signaling mechanisms; and eliminating pathogenic B cells. They represent effective therapies for a variety of immune-mediated skin disorders such as psoriasis, atopic dermatitis, hidradenitis suppurativa, pemphigus vulgaris, chronic urticaria, and cutaneous B-cell lymphomas. This chapter reviews the mechanisms of action, indications, side effects, and interactions of systemic immunomodulators used in dermatology.
Keywordssystemic immunomodulators, interferon, granulocyte–macrophage colony-stimulating factor (GM-CSF), granulocyte colony-stimulating factor, targeted immune modulators, tumor necrosis factor inhibitors, interleukin-17 inhibitors, interleukin-12/23 inhibitors, ustekinumab, dupilumab, interleukin-1 inhibitors, rituximab, omalizumab, Janus kinase (JAK) inhibitors, intravenous immune globulin (IVIg)
Human cells produce three antigenically distinct forms of interferon (IFN), originally described as leukocyte (α), fibroblast (β), and immune (γ)
Recombinant DNA technology can produce large quantities of highly purified human IFN
IFNs have antiviral, antiproliferative, and immunoregulatory properties
Dermatologic FDA-approved indications for IFNs include condyloma acuminata (IFN-α-2b), melanoma (IFN-α-2b), and AIDS-associated Kaposi sarcoma (IFN-α-2a and IFN-α-2b)
Side effects include flu-like symptoms, leukopenia, nausea, vomiting, and hepatitis
Interferons (IFNs) are a family of secretory glycoproteins produced by most eukaryotic cells in response to a variety of viral and non-viral stimuli. All IFNs display antiviral activity, and they also modulate other cellular functions. IFN does not inactivate viruses directly but rather renders cells resistant to viruses.
There are three antigenically distinct IFNs, originally described as leukocyte (α), fibroblast (β), and immune (γ) ( Table 128.1 ). Utilization of recombinant DNA technology has enabled the production of large amounts of highly purified human IFN by Escherichia coli. This chapter will focus primarily on IFN-α-2a and IFN-α-2b, which are the most frequently used IFNs for patients with dermatologic diseases.
|Generic name||Trade name ®||Route||Half-life||Peak effect|
|Interferon-α-2a||Roferon-A||sc||5.1 h||3.8–7.3 h|
|Interferon-α-2a||Pegasys||sc||160 h||72–96 h|
|Interferon-α-2b||Intron A |
Rebetron when combined with ribavirin
|iv, il, im, sc||2–3 h||30 min (iv) |
3–12 h (im, sc)
|Interferon-α-2b||Peg-Intron||sc||40 h||15–44 h|
|Interferon-α-N3||Alferon N||il||2–3 h||3–12 h|
|Interferon-β-1a||Avonex||im||10 h||3–15 h|
|Rebif||sc||69 h||16 h|
|Interferon-β-1b||Betaseron||sc||4.3 h||1–8 h|
|Interferon-γ-1b||Actimmune||sc||5.9 h||4.7 h|
|Interferon alphacon-1||Infergen||sc||−||24–36 h|
Pharmacology and Mechanism of Action
There are over 30 subtypes of IFN-α, each composed of 165–172 amino acids with very similar sequences. For example, IFN-α-2a and IFN-α-2b differ in just a single amino acid. IFN-β has 29% structural homology to IFN-α, but IFN-γ has no significant structural homology to either IFN-α or IFN-β .
IFNs must be injected intralesionally or administered parenterally. Systemic absorption via the intramuscular or subcutaneous route is >80% for IFN-α; its peak effect is 3–12 hours after injection and is undetectable after 24 hours . Pegylated forms of IFN-α contain polyethylene glycol (PEG) side chains, which prolong their therapeutic effect. As a result, they can be administered less frequently with improved tolerability (see Table 128.1 ). IFNs undergo renal catabolism.
IFN activity is dependent upon its ability to bind to specific receptors on the surface of target cells. IFN-α and IFN-β (type I IFNs) share the same IFN-α/β receptor, whereas IFN-γ (type II IFN) binds to a separate receptor; both receptors signal via JAK (Janus kinase)–STAT (signal transducer and activator of transcription)-mediated pathways. The mechanisms of their antiviral, antiproliferative, and immunoregulatory activities are listed in Table 128.2 .
|MECHANISMS OF ACTION FOR INTERFERONS|
|Cellular mechanism||Clinical effect|
|Induction of 2′–5′oligoadenylate synthetase |
Induction of ribonuclease
Induction of protein kinase P1
|Induction of 2′–5′oligoadenylate synthetase |
Inhibition of various growth factors
Enhanced p53 tumor suppressor gene expression
Downregulation of MYC, FOX and certain RAS oncogenes
|Induction of class I & II MHC antigens |
Increased number of natural killer (NK) cells
Inhibit production of Th2 cytokines such as IL-4 and IL-5
Indications, Off-Label Uses, and Dosages ( Table 128.3 )
|DERMATOLOGIC DISEASES TREATED WITH INTERFERONS|
|Condyloma acuminata (α) |
AIDS-associated Kaposi sarcoma (α)
Melanoma (adjuvant) (α)
Chronic granulomatous disease (γ)
|Some off-label dermatologic uses|
|Basal cell carcinoma (α) |
Actinic keratoses (α)
Squamous cell carcinoma (α)
Giant condyloma of Buschke–Lowenstein (α)
Cutaneous T-cell lymphoma (α, β, γ)
Granulomatous slack skin (α, γ)
Infantile hemangioma (α)
Tufted angioma (α)
|Verrucae vulgares (α, β, γ) |
Epidermodysplasia verruciformis (α)
Herpes zoster (α)
Herpes simplex (α)
Necrolytic acral erythema (with hepatitis C) (α)
Mycobacterium avium complex infections (γ)
|Atopic dermatitis (γ) |
Keloids (α, γ)
Behçet disease (α)
Systemic sclerosis (γ)
Absolute contraindications are hypersensitivity to components of the formulations. Relative contraindications include cardiac arrhythmias, depression or other psychiatric disorders, leukopenia, coagulopathies, and previous organ transplantation.
Major Side Effects
The adverse effects of IFN are dose-dependent and generally improve or remit during continued therapy or following dose reduction. In addition, the adverse effects are usually rapidly reversible upon cessation of treatment.
Approximately 5% of patients treated with IFN-β-1b for multiple sclerosis develop skin necrosis at the site of injection secondary to a localized vasculopathy ( Fig. 128.1 ). Plaques of psoriasis can also develop at the sites of injection of IFN, as can flares of psoriasis in patients receiving IFN ( Fig. 128.2 ). Other occasional cutaneous side effects include alopecia, xerosis, and vitiligo.
The most common adverse effects are flu-like symptoms of fever, chills, fatigue, myalgias, headache, and arthralgias. Generally, in healthy individuals, subcutaneous administration of IFN-α in doses of ≤3 million IU every other day induces tolerable flu-like symptoms or no adverse effects. Prophylactic (1–2 hours prior to injection) administration of acetaminophen (650 mg), aspirin (650 mg), or NSAIDs (e.g. ibuprofen 400 mg) helps to prevent these effects.
Neurologic and psychiatric effects
Spastic diplegia was reported in 5 of 26 patients with infantile hemangiomas treated with 1.0–3.6 million IU/day of IFN-α-2a ; postulated explanations included the immaturity of the infant’s central nervous system and preservatives (e.g. benzyl and phenol alcohol) in the preparations used. Depression and suicidal ideation/behavior have been reported in association with IFN-α therapy .
Significant hypotension, arrhythmias, or tachycardia (heart rate ≥150 beats/minute) can occur in association with IFN therapy . These side effects usually resolve upon IFN dose reduction or discontinuation but occasionally require additional therapy. Patients with a history of a myocardial infarction or arrhythmias require close monitoring.
Rhabdomyolysis occasionally occurs and has been fatal in at least one patient treated with high-dose IFN-α-2b (20 million IU intravenously twice daily for 5 days) . Elevated serum creatine kinase levels should prompt a reduction in dose or cessation of therapy, depending on the severity of the elevation.
Gastrointestinal effects and bone marrow suppression
Gastrointestinal disturbances such as nausea, vomiting, and diarrhea can occur, as can anorexia and hepatitis. Fatal cases of hepatitis have been reported in patients receiving high-dose IFN. Bone marrow suppression may develop in patients receiving high-dose therapy or in those who have other reasons for bone marrow suppression (e.g. concomitant medications). Serial evaluation with liver function tests and complete blood counts is recommended.
Other adverse effects
Neutralizing antibodies can develop in patients receiving IFN-α-2a or IFN-α-2b, and they appear to be specific to recombinant rather than natural IFN . Thyroiditis and/or hypothyroidism occurs in up to 40% of hepatitis C patients treated with IFN-α .
IFN-α-2a may reduce the clearance of aminophylline, probably due to inhibition of the cytochrome P450 enzyme system . Caution must be taken when IFN is administered in conjunction with other potentially myelosuppressive (including zidovudine) or neurotoxic (e.g. vinca alkaloids) drugs. The concomitant use of IFN and IL-2 may increase the risk of renal failure.
Use in Pregnancy
IFNs are rated as pregnancy category C, although they do not appear to cross the placenta. While it is unknown whether IFN is excreted into human milk, it is excreted into mouse milk.
Granulocyte–Macrophage and Granulocyte Colony-Stimulating Factors (GM-CSF and G-CSF)
The indications and side effects of granulocyte–macrophage and granulocyte colony-stimulating factors (GM-CSF and G-CSF) are outlined in Table 128.4 .
|GRANULOCYTE–MACROPHAGE AND GRANULOCYTE COLONY-STIMULATING FACTORS (GM-CSF & G-CSF)|
|These glycoproteins regulate the survival, proliferation, differentiation and functional activation of hematopoietic cells|
|Additive effects with other drugs that cause neutrophilia, e.g. corticosteroids, lithium|
|Pregnancy and lactation|
|Category C; unknown if excreted in breast milk|
Targeted Immune Modulators
Tumor necrosis factor (TNF) inhibitors such as etanercept, adalimumab, and infliximab can be effective treatments for psoriasis, psoriatic arthritis, hidradenitis suppurativa, and other dermatoses in which TNF signaling has a pathogenic role
Interleukin (IL)-12 and IL-23 signaling is important for the Th17 immune response; ustekinumab binds to the p40 receptor subunit shared by these cytokines and is approved for the treatment of psoriasis and psoriatic arthritis
The IL-17 inhibitors secukinumab, ixekizumab, and brodalumab are approved for the treatment of psoriasis and (for secukinumab) psoriatic arthritis
Dupilumab blocks IL-4 and IL-13 signaling and is approved for the treatment of atopic dermatitis
The IL-1 antagonists anakinra, canakinumab, and rilonacept are used to treat several autoinflammatory diseases, including cryopyrin-associated periodic syndromes and deficiency of the IL-1 receptor antagonist (DIRA)
Rituximab, an agent that blocks CD20 on B cells, is approved for the treatment of B-cell lymphoma, granulomatosis with polyangiitis, and microscopic polyangiitis; it is also useful in other B-cell-mediated skin diseases such as pemphigus vulgaris
Omalizumab binds to the IgE receptor on mast cells and is approved for the treatment of chronic urticaria
Janus kinase (JAK) inhibitors such as tofacitinib and ruxolitinib have efficacy in the treatment of dermatologic conditions including psoriasis and alopecia areata
Advances in molecular technology have enabled the development of drugs that target specific proteins involved in disease pathogenesis. This has resulted in effective therapies for a variety of immune-mediated skin disorders, including psoriasis, atopic dermatitis, hidradenitis suppurativa, pemphigus vulgaris, urticaria, and cutaneous B-cell lymphomas as well as the cutaneous manifestations of systemic conditions such as Crohn disease, sarcoidosis, and vasculitis. These drugs, which are referred to as “biologic” agents, work via mechanisms that include altering T-cell activation and differentiation into Th1, Th2, or Th17 cells; blocking cytokines, their receptors, or their intracellular signaling mechanisms; and eliminating pathogenic B cells.
Tumor Necrosis Factor Inhibitors
The FDA has approved multiple tumor necrosis factor (TNF; previously known as TNF-α) inhibitors: etanercept (Enbrel ® ), etanercept-szzs (Erelzi TM ), infliximab (Remicade ® ), infliximab-dyyb (Inflectra ® ), adalimumab (Humira ® ), adalimumab-atto (Amjevita ® ), golimumab (Simponi ® ), and certolizumab pegol (Cimzia ® ). A review of their mechanisms of action, major side effects, and contraindications is followed by a discussion of issues that relate specifically to individual drugs.
Mechanism of action
Infliximab, adalimumab, golimumab, and certolizumab pegol are monoclonal antibodies, while etanercept is a dimeric fusion protein composed of the extracellular portions of two p75 TNF receptors linked to the Fc portion of IgG1 ( Fig. 128.4 ). Although all four monoclonal antibodies target human TNF, infliximab is chimeric (human–mouse) IgG1, adalimumab and golimumab are human recombinant IgG1, and certolizumab pegol is a humanized pegylated Fab fragment (see Table 128.5 ).
|NOMENCLATURE FOR MONOCLONAL ANTIBODIES AND FUSION PROTEINS|
|Prefix||Sub-stem A: target system [previous nomenclature system]||Sub-stem B: source system||Suffix|
“Peg-” can be used if pegylated (or can add pegol as a second word)
|-anibi-||Angiogenesis||-a-||Rat||-mab||Immunoglobulin variable domain|
|-f(u)- [-fung-]||Fungal||-i-||Primate||-cept||Receptor (takes the place of a variable domain)|
|-l(i)- [-li(m)-]||Immunomodulating||-u-||Human||-nib||Tyrosine kinase inhibitor|
|-n(e)- [-ne(u)(r)-]||Nervous system||-xi-||Chimeric †|
|-tox(a)-||Toxin *||-zu-||Humanized ‡|

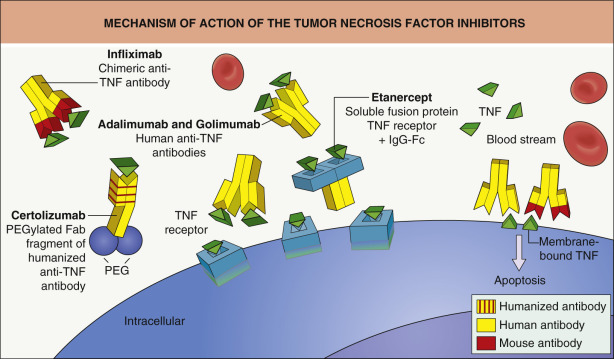

All of the TNF inhibitors can bind to soluble TNF and block its ability to activate TNF receptors (see Fig. 128.4 ). By interacting with membrane-bound TNF, the IgG1 monoclonal antibodies can also activate complement-dependent cytotoxicity and induce cellular apoptosis . This capacity to destroy TNF-producing cells may explain the greater efficacy of these monoclonal antibodies compared to etanercept in the treatment of granulomatous conditions as well as the potentially higher risk of infections associated with their use. In addition to the anti-inflammatory effects of TNF inhibitors, blocking TNF signaling may have an impact on the neuroendocrine system .
Each TNF inhibitor is contraindicated in patients with known hypersensitivity to that particular medication, and infliximab is contraindicated in those with an allergy to murine proteins. These agents should be avoided in patients with a significant active infection, malignancy, congestive heart failure (especially if unstable), or multiple sclerosis .
Major side effects ( Table 128.6 )
Disseminated and/or opportunistic infections such as histoplasmosis, coccidioidomycosis, listeriosis, and Pneumocystis jiroveci pneumonia may occur in patients treated with TNF inhibitors . An increased risk of symptomatic mycobacterial infections ( Fig. 128.5 ), including reactivation of latent tuberculosis, has also been observed in patients treated with these agents. However, most of the studies evaluating the risk of infection associated with the use of TNF inhibitors have been in patients with rheumatoid arthritis or inflammatory bowel disease, who often concomitantly receive additional immunosuppressive agents. A meta-analysis of 20 randomized controlled trials (total n=6810) of TNF inhibitor therapy for psoriasis or psoriatic arthritis over periods of 12–30 weeks found no association between the use of these agents and the risk of infection (overall or serious) when adjusted for different follow-up times in treatment and control groups .
|FDA WARNINGS AND PRECAUTIONS FOR TARGETED IMMUNE MODULATORS WITH DERMATOLOGIC INDICATIONS|
|TNF inhibitors: adalimumab, certolizumab, etanercept, golimumab, infliximab|
|IL-17 inhibitors: ixekizumab, secukinumab, brodalumab|
|IL-1 inhibitors: anakinra, canakinumab, rilonacept|
Recommended monitoring for dermatologic patients receiving TNF inhibitors is outlined in Table 128.7 . A purified protein derivative (PPD) skin test, IFN-γ release assay (e.g. QuantiFERON ® TB Gold, T-SPOT ® .TB), and/or chest X-ray (e.g. if immunosuppression or history of tuberculosis) is required at baseline and (typically) repeated annually during therapy. Patients with untreated latent tuberculosis should receive antituberculous therapy prior to treatment with a TNF inhibitor. Reactivation of hepatitis B virus has also been observed in patients who are chronic hepatitis B carriers (i.e. hepatitis B surface antigen positive) while receiving a TNF inhibitor, so patients should be evaluated for hepatitis B virus infection prior to therapy ( Table 128.8 ). TNF inhibitors do not generally appear to have an adverse effect on viral load or hepatitis activity in psoriasis patients with chronic hepatitis C virus infection .
|RECOMMENDED EVALUATION FOR PATIENTS RECEIVING TARGETED IMMUNE MODULATORS FOR DERMATOLOGIC DISORDERS|
|Baseline history and physical examination|
|Prior to treatment||During treatment|
* Recommended vaccines should be administered prior to initiation of therapy, with live vaccines (see Table 128.10 ) given at least 2–4 weeks prior to starting the medication; the bacillus Calmette–Guérin (BCG) vaccine should not be given in the year prior to beginning or the year after completing ustekinumab therapy.
Risk of malignancy
The potential of TNF inhibitors to increase the risk of malignancy is controversial and may be dependent upon the disease that is being treated. TNF inhibitor therapy in patients with rheumatoid arthritis has been associated with an approximately threefold increase in the risk of lymphoma and malignancy in general , but this patient group is known to have a heightened susceptibility to lymphoma and often receives additional immunosuppressive agents. Most studies have not demonstrated an increase in the risk of other internal malignancies in patients treated with TNF inhibitors . However, in one study there appeared to be an increased risk of solid malignancies associated with etanercept therapy for granulomatosis with polyangiitis . In addition, non-melanoma skin cancers and melanoma may be more frequent in patients with rheumatoid arthritis who are treated with TNF inhibitors than those who do not receive these agents . A meta-analysis of 20 randomized controlled trials (total n=6810) of TNF inhibitor therapy for psoriasis or psoriatic arthritis over periods of 12–30 weeks found no significant association between the use of these agents and the development of malignancy .
Adolescents and young adults with inflammatory bowel disease who receive infliximab and concomitant azathioprine or 6-mercaptopurine appear to have an increased risk of a rare, aggressive hepatosplenic T-cell lymphoma. In an analysis of 48 malignancies in children and adolescents treated with TNF inhibitors that were reported to the FDA , it was noted that half were lymphomas, almost two-thirds were in patients taking infliximab, and 88% of the patients were concomitantly receiving another immunosuppressive agent. Although the incidence of malignancy was higher than the background rate in the general pediatric population, the potential role of other medications as well as the underlying disorders, primarily inflammatory bowel disease and juvenile idiopathic arthritis (JIA), precluded establishing a causal relationship with TNF inhibitor therapy.
Treatment with TNF inhibitors is associated with an increased likelihood of developing antinuclear and anti-dsDNA antibodies. Signs and symptoms of cutaneous and systemic lupus erythematosus (SLE) occasionally arise in patients receiving TNF inhibitors, but in general these manifestations resolve upon cessation of treatment . Conversely, several small case series have reported marked improvement of subacute cutaneous lupus erythematosus by etanercept ( Fig. 128.6 ). It is not necessary to evaluate patients for autoantibodies before or during therapy with TNF inhibitors. However, the development of antinuclear antibodies may be linked to loss of TNF inhibitor efficacy .
Although etanercept was originally utilized as a therapy for multiple sclerosis, new onset or exacerbation of multiple sclerosis or other demyelinating diseases represents is a potential complication of TNF inhibitor treatment . In some patients, the symptoms of multiple sclerosis have abated despite continued therapy. It seems reasonable to avoid using TNF inhibitors in patients with a history of multiple sclerosis or other demyelinating diseases.
Congestive heart failure
There have been reports of congestive heart failure worsening or developing in patients receiving TNF inhibitors. As a result, it is recommended that therapy with TNF inhibitors be avoided in patients with unstable cardiac disease.
A variety of adverse skin reactions to TNF inhibitors have been described ( Table 128.9 ). There are reports of new-onset psoriasis in patients with no previous history of psoriasis, often manifesting as palmoplantar pustulosis ( Fig. 128.7 ) . The exact mechanism for this reaction is not known, and it is possible that some patients with presumed rheumatoid arthritis actually had psoriatic arthritis. Cutaneous small vessel vasculitis and interstitial granulomatous dermatitis (IGD) can also develop in patients undergoing TNF inhibitor therapy , but a subset of these patients have rheumatoid arthritis, which itself can be associated with vasculitis and IGD . Additional cutaneous reactions that have been described in patients receiving TNF inhibitors include eczematous eruptions, lichenoid dermatitis, and other granulomatous conditions .
|CUTANEOUS SIDE EFFECTS OF TARGETED IMMUNE MODULATORS|
|Tumor necrosis factor inhibitors|
|Epidermal growth factor receptor inhibitors|
|Other kinase inhibitors and blocking antibodies – see Table 21.16|
Live vaccines are contraindicated in patients receiving TNF inhibitors ( Table 128.10 ). The effectiveness of vaccines in patients receiving these agents is unknown, but an immune response to influenza and pneumococcal vaccines has been documented . It is recommended that patients (especially children) be brought up-to-date with all immunizations prior to initiating treatment with TNF inhibitors.
|VACCINES THAT CONTAIN LIVE ATTENUATED VIRUSES OR BACTERIA|
