Laser Surgery

INTRODUCTION

The Problem Being Treated

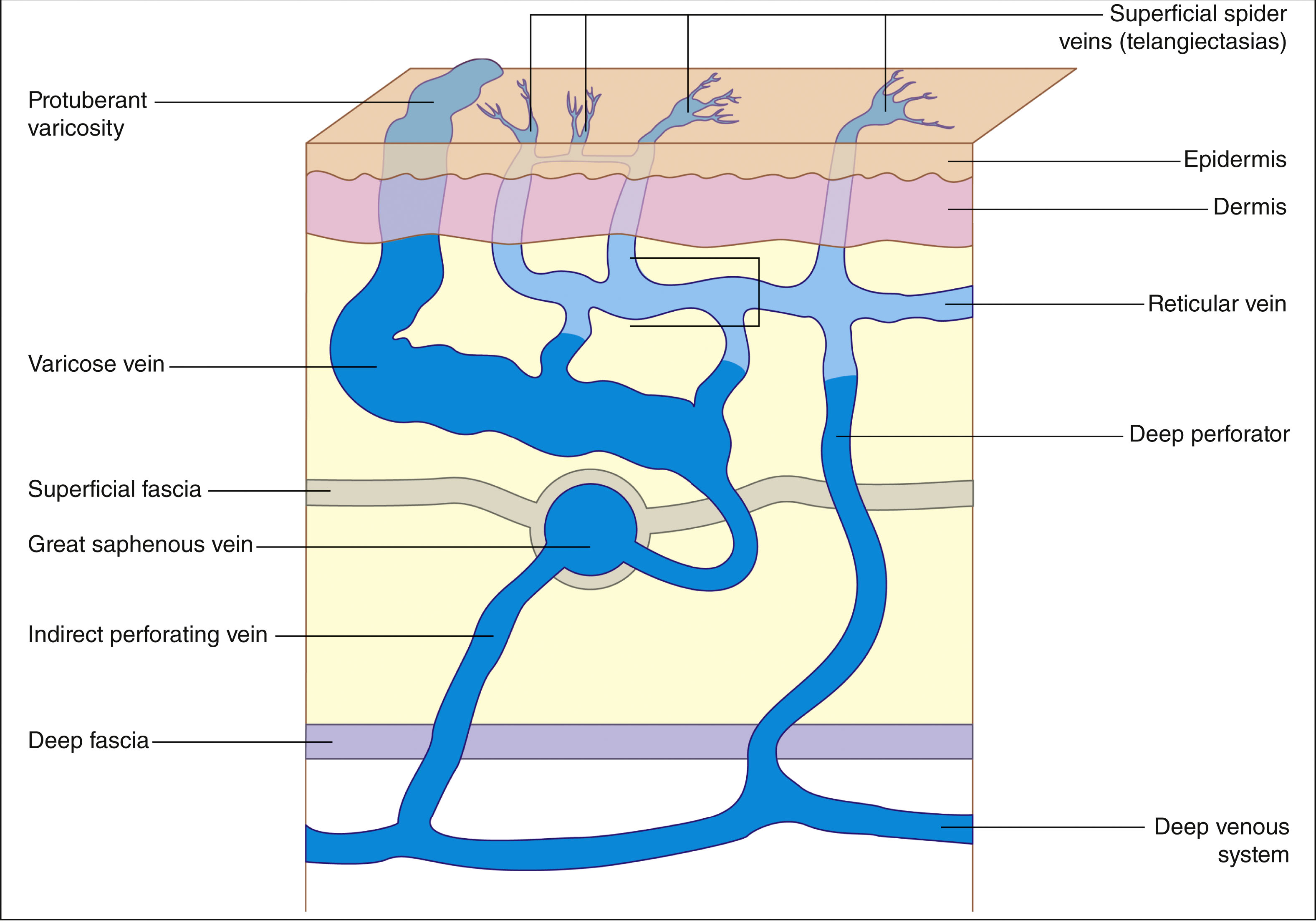

Prominent leg veins affect as many as 41% of females and 15% of males in the United States. Vascular pathology can be divided into superficial spider veins or telangiectasias, deeper reticular veins, and protuberant varicosities ( Fig. 7.1 ). Causes include heredity, hormones, prolonged standing, obesity, pregnancy, and aging. Although leg veins may cause symptoms, such as fatigue, aching, swelling, throbbing and pain, treatment is sought mainly because of their unsightly appearance.

A sagittal anatomical diagram of nasal cavity airflow patterns and structures. The sagittal anatomical diagram illustrates the nasal cavity airflow patterns and anatomical structures, with detailed labeling of the frontal sinus, sphenoid sinus, superior nasal concha, middle nasal concha, inferior nasal concha, hard palate, and soft palate, and directional arrows indicating the complex airflow pathways through the nasal passages during respiration. — Fig. 7.1

The venous system of the lower extremity is composed of a complex, interconnected superficial and deep plexus. The superficial veins lie just beneath the skin, and the deep veins travel within the muscles of the leg. Because of flow patterns between the two networks, superficial spider veins may be the result of increased pressure in deeper reticular or varicose veins.

The variety of sizes, depths, flow patterns, and vessel thickness make the treatment of leg veins much more difficult than treatment of facial veins. One important consideration is that even the fine, relatively superficial telangiectatic vessels of the legs are not very close to the surface of the skin, like facial veins, but rather can lie at a depth of up to several millimeters. Most smaller telangiectasias (0.2–1.0 mm) lie at a depth of about 300 μm below the surface of the skin and represent the most common complaint among patients presenting with leg veins. Adverse events and incomplete response may result as laser energy is dissipated in the overlying skin with only partial effect permeating to the targeted vessels ( Fig. 7.2 ). There is no single treatment for all leg veins, and lasers may be used as adjunctive therapy in patients receiving sclerotherapy, ambulatory phlebectomy, or endovenous ablation.

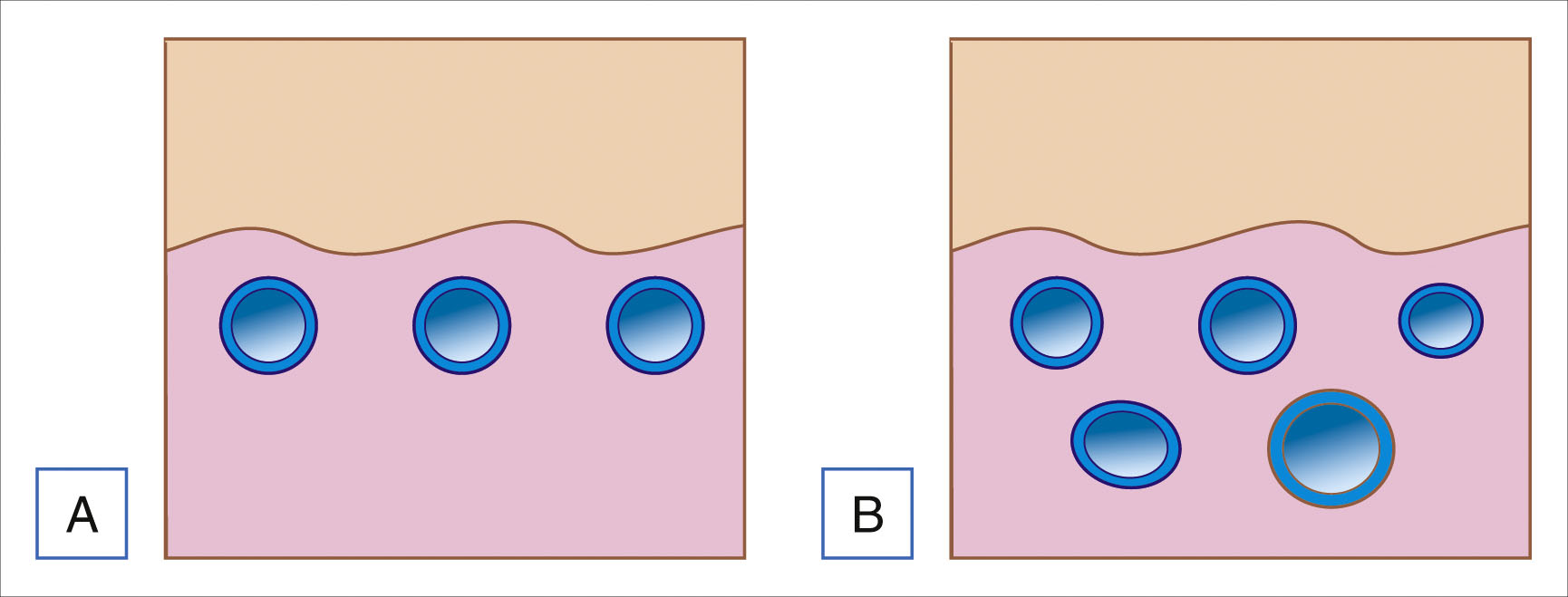

A side-by-side comparison shows three evenly spaced circular vessels in section A and five unevenly sized and spaced vessels in section B. The side-by-side comparison is labeled A and B. The left section labeled A shows three circular vessels placed at a similar depth below a wavy upper surface. Each vessel has a similar size and equal spacing. The right section labeled B shows five vessels that vary in size and depth. One vessel appears larger than the others. The vessels in section B are unevenly spaced and placed at different levels below the surface. — Fig. 7.2

Laser therapy is particularly useful for the treatment of small spider veins or telangiectasias (<0.5 mm) and in the treatment of telangiectatic matting resulting from other modes of treatment. It can also be used in the treatment of large spider and small reticular veins. Sclerotherapy is generally still considered the gold standard for treatment of larger leg veins; however, several studies suggest that results between laser therapy and sclerotherapy are equivalent in spider and small reticular veins. Varicose veins are best treated with phlebectomy, ligation, or endovenous ablation ( Box 7.1 ). This chapter will deal only with laser surgery; sclerotherapy and surgical procedures are discussed elsewhere in this book.

Box 7.1

Treatments of Choice for Various Types of Leg Veins

•
Small telangiectasias: laser or sclerotherapy
•
Telangiectatic matting: laser or sclerotherapy
•
Large spider veins, reticular veins: sclerotherapy
•
Varicose veins: endovenous ablation, ambulatory phlebectomy, or ligation

PATIENT SELECTION

Laser treatment is most effective for small, superficial red or blue veins. It is an ideal therapy for patients who are prone to telangiectatic matting, do not respond to sclerotherapy, or are fearful of needles. Relative contraindications to laser surgery include pregnancy, tanned skin, the use of iron supplements or anticoagulation, history of a photosensitivity disorder, or hypertrophic/keloidal scarring ( Fig. 7.3 ).

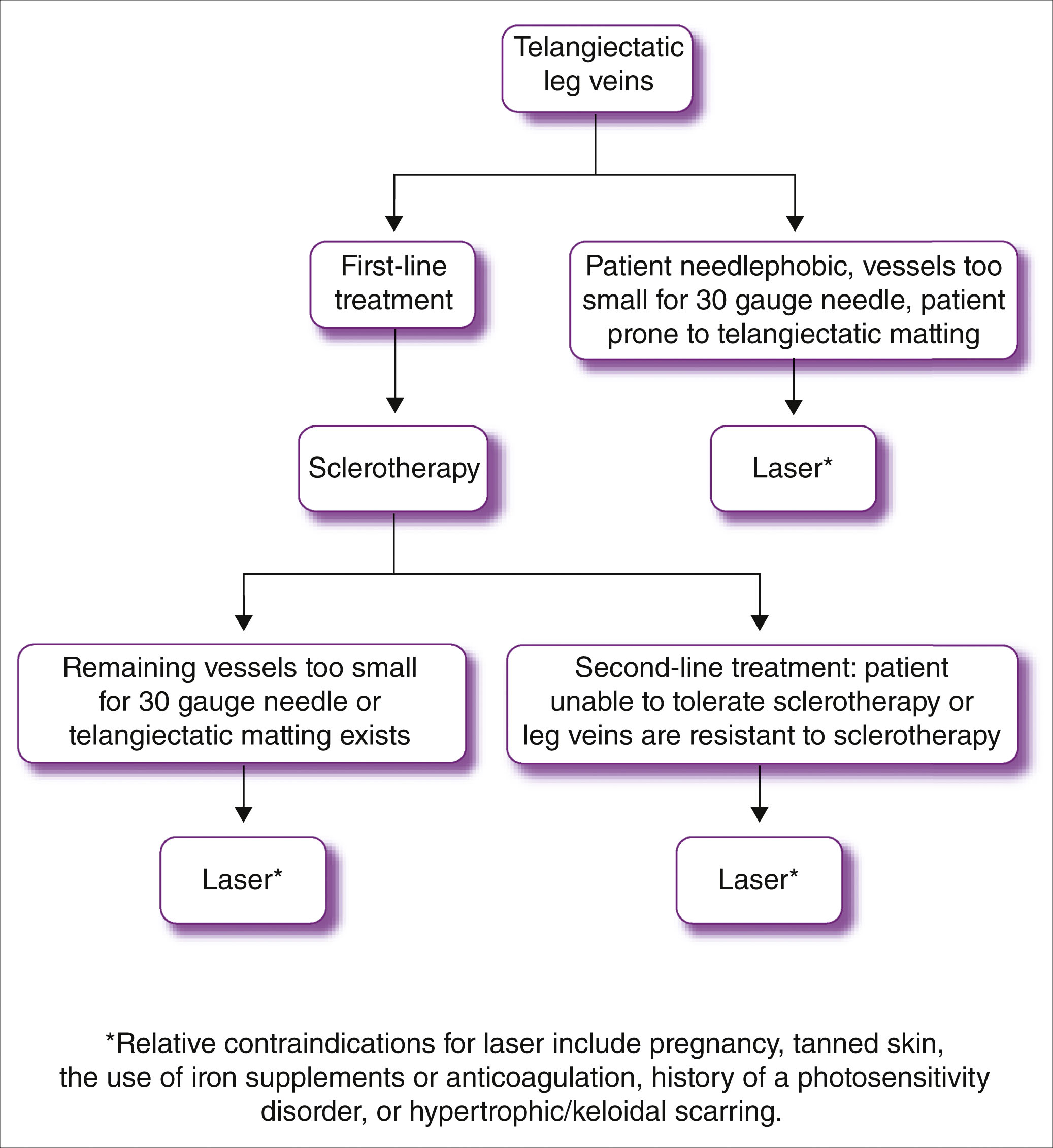

A treatment flowchart for telangiectatic leg veins shows branching paths with options for sclerotherapy or laser, based on specific conditions. The treatment flowchart's top box reads telangiectatic leg veins. Two arrows lead down to boxes labeled first-line treatment, and the patient’s needlephobic vessels are too small for a 30-gauge needle; the patient is prone to telangiectatic matting. The left path continues to a box labeled sclerotherapy. An arrow leads from this box to another that reads remaining vessels too small for a 30-gauge needle or telangiectatic matting exists. Below it is a box labeled laser. The right path from the top leads to a laser box. Another arrow extends from the sclerotherapy box to a second line treatment box that reads patient unable to tolerate sclerotherapy, or leg veins are resistant to sclerotherapy. Below this is another laser box. A note below the chart lists relative contraindications for the laser. — Fig. 7.3

EXPECTED BENEFITS

Laser therapy is an effective modality for the treatment of leg veins. Small telangiectatic vessels often disappear at the time of treatment, providing the patient and physician with a visual record of success. Larger telangiectasias and reticular veins typically do not disappear at the time of treatment but will gradually improve over the course of several months. Selected vessels may clinically darken after treatment as the blood in the vessels coagulates. Coles et al. (2002) have compared laser therapy with a long-pulsed Nd:YAG laser to foam sclerotherapy with 0.6% sodium tetradecyl sulfate in 20 patients with vessels ranging from 0.25 to 3.0 mm. The group found that mean clearance scores were a slightly better 2.5 out of 4.0 for laser-treated veins compared to 2.3 out of 4.0 for sclerotherapy; however, only 35% of the patient group said they preferred laser treatment to sclerotherapy. Levy (2004) conducted another study comparing liquid sclerotherapy with 0.5% polidocanol to the long-pulsed Nd:YAG laser for vessels ranging from 0.5 to 2.0 mm and also found the two treatment methods to be equivalent with no statistical difference in outcome.

In a study by Sadick (2003), treating reticular and spider telangiectasias on the lower legs using the monomodal approach with the 1064 nm Nd:YAG laser and variable spot sizes and pulse width parameters, approximately 20% of treated vessels had a 50%–75% improvement after three treatments spaced 1 month apart ( Fig. 7.4 ). Improvements continued over time, with 80% of vessels having greater than 75% clearing at 6 months’ follow-up. Of the patients treated, 90% were highly satisfied with the treatment.

A set of six labeled photos shows three patients with visible leg veins before treatment on the left and reduced visibility of veins after treatment on the right. The set of six labeled photos is labeled A to F. The top row shows photos labeled A and B. Photo A shows a leg with multiple visible thin veins. Photo B shows the same leg with fewer visible veins. The middle row includes photos C and D. Photo C shows a leg with several fine veins along the surface. Photo D shows the same leg with less prominent veins. The bottom row includes photos E and F. Photo E shows a leg with a few visible veins around the knee. Photo F shows the same leg with mostly smooth skin and reduced vein visibility. Each row includes one pretreatment and one post-treatment photo. — Fig. 7.4

In a comparative study by Eremia et al. of the 1064 nm Nd:YAG, 810 nm diode, and 755 nm Alexandrite lasers for the treatment of leg veins measuring 0.3–3 mm in diameter, the Nd:YAG laser was associated with the greatest percent improvement at 3 months’ follow-up ( Table 7.1 ). Purpura and matting were problematic with the Alexandrite laser, and results with the long-pulsed diode were unpredictable among the 22 females in the study. No long-term controlled studies have been carried out regarding the persistence of vessel clearing after laser treatment of the legs.

Table 7.1

Comparison of the 1064 nm Nd:YAG, 810 nm Diode, and 755 nm Alexandrite Lasers for Leg Veins Measuring 0.3–3 mm in Diameter

(Reproduced from Eremia S, Li C, Umar SH 2002 A side-by-side comparative study of 1,064 nm Nd:Yag, 810 nm diode and 755 nm Alexandrite for treatment of 0.3–3 mm leg veins. Dermatologic Surgery 28:224–230.)

Laser	Patients Achieving 75% Clearance at 3 Months
1064 nm Nd:YAG	88%
810 nm Diode	29%
755 nm Alexandrite	33%

Problems intrinsic to the use of lasers for the treatment of leg veins include the need for multiple treatments, patient discomfort, inconsistent results, and high equipment cost. Reported complications include transient hyperpigmentation, purpura, epidermal surface change, telangiectatic matting, and thrombus formation. When a systematic approach is used, sclerotherapy can treat 80%–90% of vessels in a single treatment. Because of the relatively low cost of venous surgery and sclerotherapy, lasers are generally not recommended as first-line treatment.

OVERVIEW OF TREATMENT STRATEGY

Treatment Approach

A detailed physical examination should be performed on all patients presenting for the treatment of leg veins to evaluate the type and size of venous pathology and the presence of reflux or incompetent valves. Large varicose veins showing reflux must be addressed first to avoid unsuccessful treatment of smaller telangiectasias and potential complications such as dyspigmentation and telangiectatic matting.

The treatment of leg veins should follow a systematic approach ( Fig. 7.5 ). First, varicosities and large feeder vessels should be surgically removed (by ligation, stripping, or ambulatory phlebectomy) or treated with endovenous ablation. Second, sclerotherapy should then be performed proceeding from large to small vessels. This will clear approximately 80%–90% of vessels in a single treatment. Laser and light therapy should be used to treat any remaining vessels and those that are too small to reasonably undergo sclerotherapy with a 30–32-gauge needle.

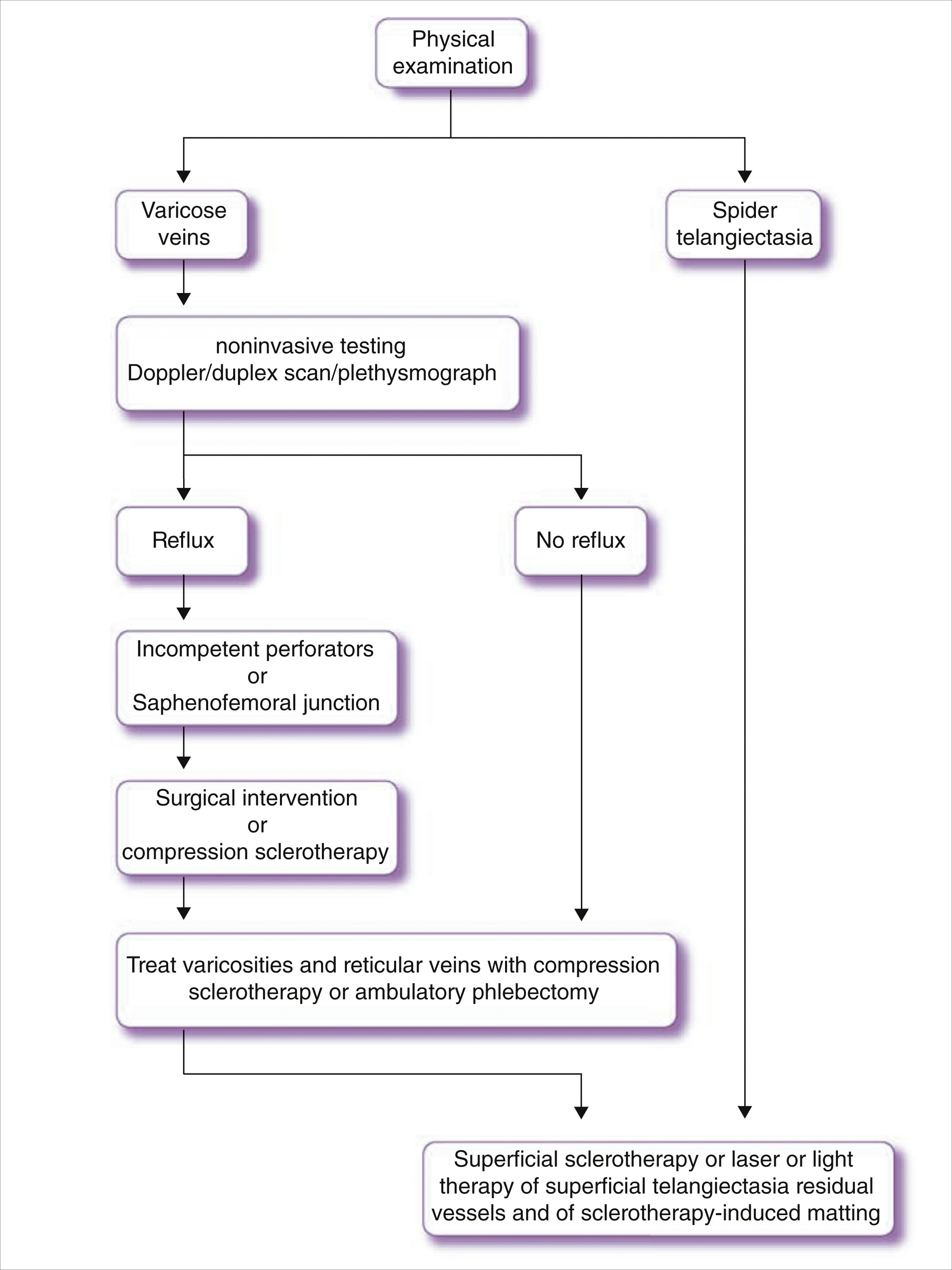

A flowchart outlines separate treatment paths for varicose veins and spider telangiectasia starting from physical examination. The flowchart's top box reads physical examination and branches into two paths labeled varicose veins and spider telangiectasia. The varicose veins path continues to a box labeled noninvasive testing, Doppler duplex scan, and plethysmograph. This leads to a box labeled reflux. Below it is a box that reads incompetent perforators or saphenofemoral junction. This continues with surgical intervention or compression sclerotherapy. The next box reads Treat varicosities and reticular veins with compression sclerotherapy or ambulatory phlebectomy. From the reflux box, an arrow also points to no reflux, which joins the spider telangiectasia path and leads directly to the same treatment box. A final box below this reads superficial sclerotherapy, or laser or light therapy of superficial telangiectasia residual vessels, and of sclerotherapy-induced matting. — Fig. 7.5

Major Determinants

Lasers in the treatment of leg veins follow the principles of selective photothermolysis ( Box 7.2 ). The major parameters that must be chosen to treat an individual vessel include wavelength, pulse duration, and spot size ( Table 7.2 ).

Box 7.2

Fundamental Properties of Laser Use for Leg Veins

•
The ideal laser must have a wavelength proportionately better absorbed by hemoglobin than the surrounding tissue.
•
Penetration should reach the full depth of the target vessel.
•
Sufficient energy must be delivered to damage the vessel without damaging the overlying skin.
•
Energy must be delivered over an exposure time long enough to slowly coagulate the vessel without damaging surrounding tissue.

Table 7.2

Optimal Laser Parameters for the Treatment of Leg Veins

Wavelength	530–1064 nm
Pulse duration	2–100 ms
Fluence	30–150 J/cm ²
Spot size	1.5–10 mm

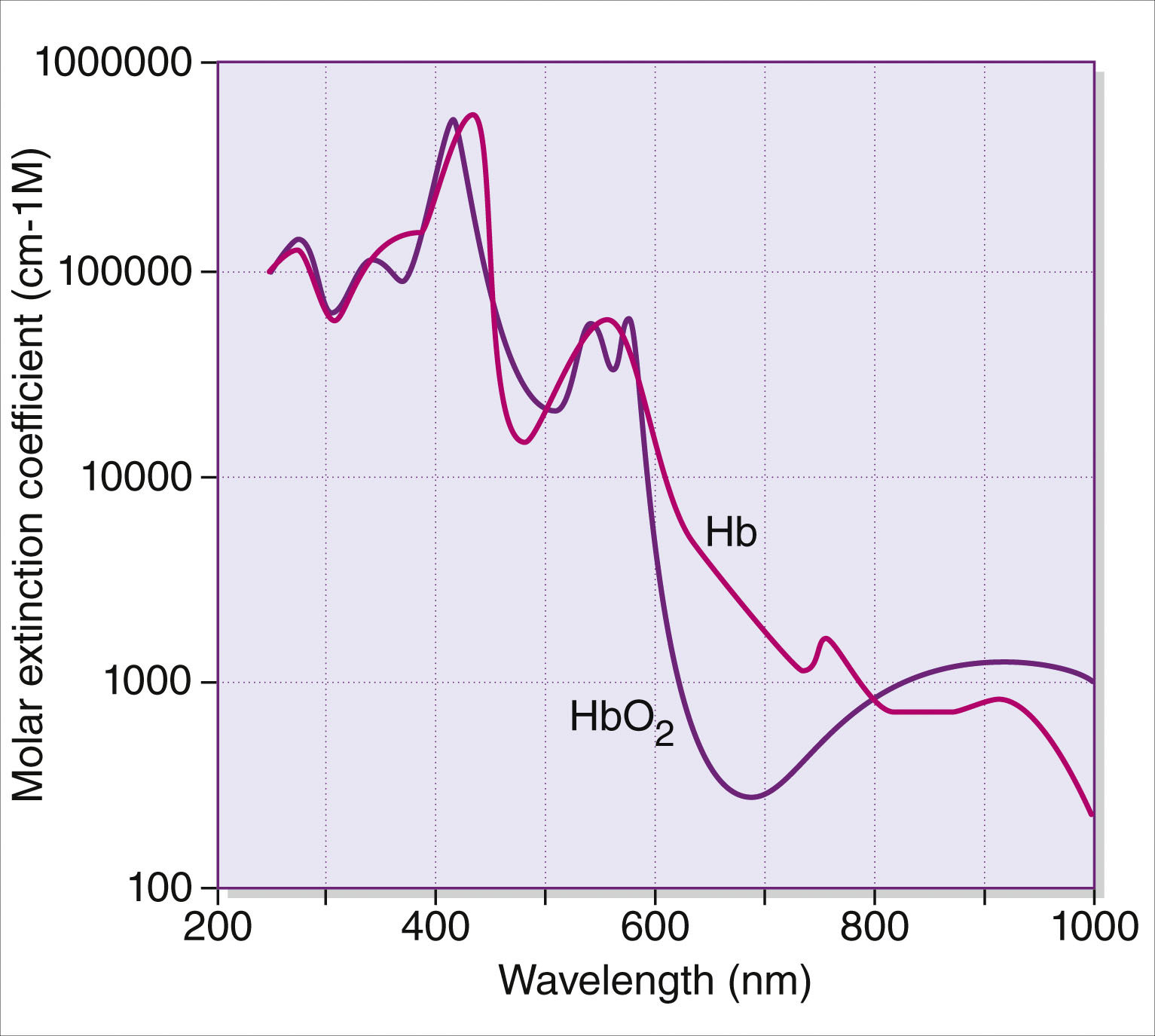

The absorption spectrum of hemoglobin has major peaks at 410, 540, and 577 nm, with smaller peaks at 920–940 nm. Blue veins respond better to wavelengths targeting the deoxyhemoglobin spectrum, and red veins respond better to wavelengths targeting the oxyhemoglobin spectrum ( Fig. 7.6 ). Absorption by hemoglobin in the long visible to near infrared range is important for vessels >0.5 mm in diameter and at least 0.5 mm below the skin surface.
