Based on the German version from Maik Sauer, Jena 2013 (Sauer M. 2013. Statische und dynamische Sonographie der mimischen Muskulatur bei Probanden und Patienten mit peripherer Fazialisparese – Erhebung geschlechtsspezifischer Referenzbereiche [Dissertation] Jena: Friedrich-Schiller-Universität).
1
Introduction
These instructions for sonography of the mimic musculature are intended to help sonographers to better understand the very complex sonographic cross-sections of the mimic and mastication musculature and to be able to reproduce them themselves. Because of the special anatomy of the mimic musculature, it is not always easy to differentiate single mimic muscles from the surrounding fat and connective tissue, so all sonographic images are accompanied by a schematic drawing to help make things clearer. To clarify the dynamic changes of the different muscles in motion, each sonographic image in relaxation is accompanied by an image in maximum arbitrary contraction. The anatomic structures marked with numbers are named and explained underneath the appropriate images. To simplify the orientation and to clearly arrange the atlas, only pictures of the right face were used. Furthermore, so-called markers were used, and their function and meaning will be illustrated in detail in section 3 .
2
General Information on Conducting the Examination
Always use a sufficient amount of ultrasound gel. Through this an optimal skin coupling is achieved and compression of the superficial muscles and vessels is prevented. In practice, the use of standoff pads has proven to be unsuitable as they are impractical for the examiner and uncomfortable for the patient. Additionally, image quality is not significantly improved by their use.
If the dynamic characteristics of the muscles are to be assessed, it has proven to be helpful to practice the appropriate movements before the examination. The movements will be explained in detail and be demonstrated by the examiner. As it is quite hard for many people to consciously perform mimic movements, we recommend using a mirror both in the training phase and during the examination itself.
Contractions of the appropriate target muscle might facilitate the clear identification of single muscles for the examiner. As the mimic musculature of elderly and/or obese people often contain a lot of connective and fat tissue and thus appear hyperechoic, identification by contraction is particularly important. The examiner should pay particular attention to ensuring the patient performs the required movement.
If perfusion is to be determined, it should take place before the contraction. Thus changes in blood flow by vascular compression or vasoactive mediators can be minimized.
3
Position of the Marker on the Ultrasound Transducer

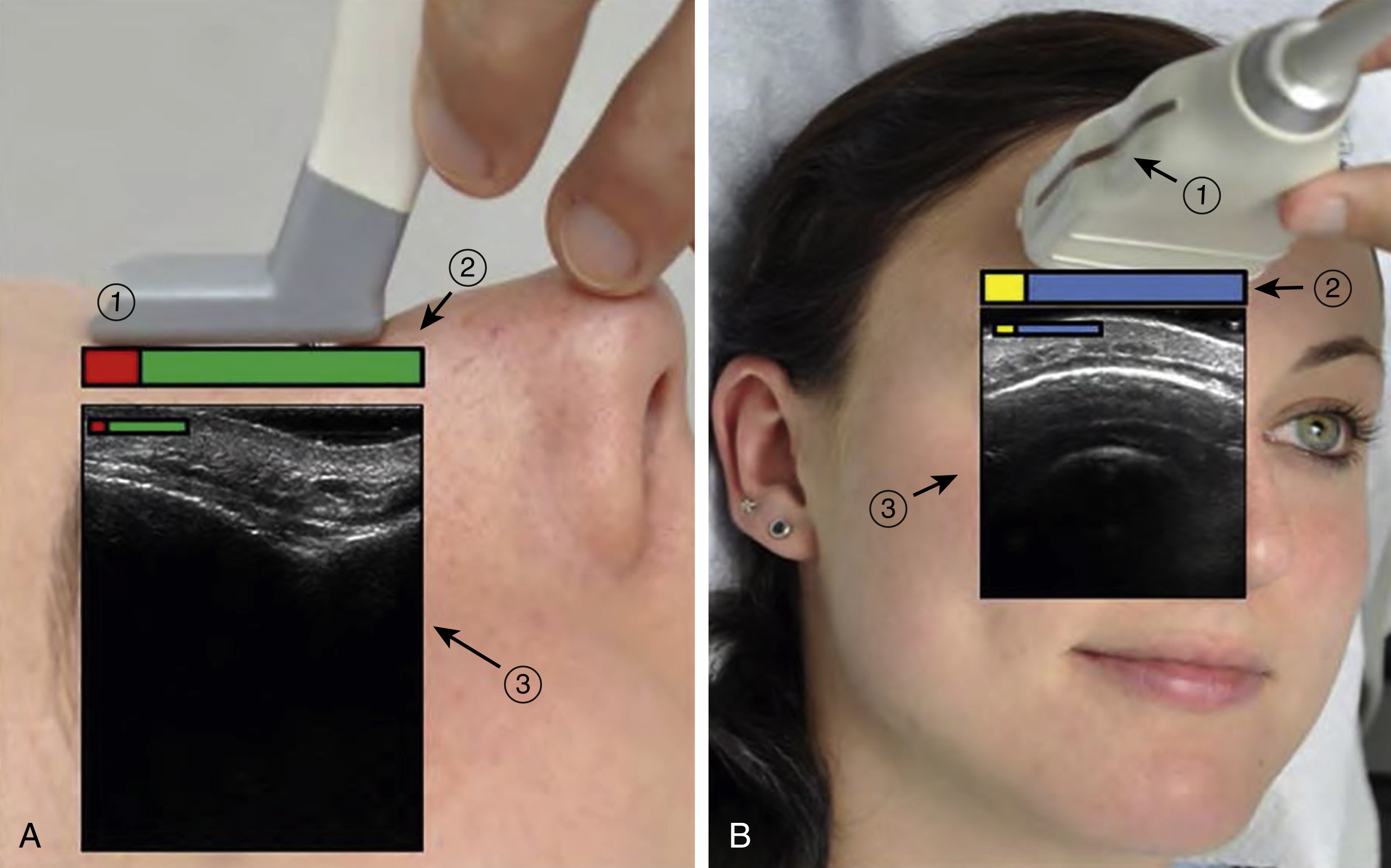

To make the position of the ultrasound transducer easier to understand, we worked with “markers.” The marker is positioned at the leading end on an L 15-7io “hockey stick” linear ultrasound transducer. To illustrate the position of the ultrasound transducer within the different figures, a green scheme transducer with red head was used for the L 15-7io hockey stick transducer. The red head corresponds to the marker position on the transducer; the green part corresponds to the contact area of the transducer. The marker is represented by a brown line on the side of an L 12-3 linear ultrasound transducer. The corresponding scheme on this transducer is blue with a yellow head. Here, the yellow head corresponds to the marker position on the transducer; the blue part corresponds to the contact area. By using the markers, the examiner is always able to easily orientate him/herself. If the ultrasound transducer is aligned right on the patient, the corresponding structures are on the right side of the ultrasound image.
4
Position and Handling of the Ultrasound Transducer
The ultrasound transducer should always be placed vertically on the skin surface, otherwise the respective muscle will be obliquely cut and the corresponding measuring values will be useless. The display of vessels is an exception from the previously described handling of the ultrasound transducer. Because of the variable course of vessels, it might be necessary to swivel the ultrasound transducer from the initial position through the cut of the vessel, i.e., to change the angle of the ultrasound transducer to the skin surface. Thus, it is possible to show a straight, axial cut of the vessel along its course.
5
Anatomy of the Mimic Musculature
| Muscle | Origin/Approach | Innervation/Blood Supply | Function |
|---|---|---|---|
| Muscles of the Skullcap | |||
| M. epicranius | |||
M. occipitofrontalis
| Origin Over the tendons of adjacent muscles in the range of pars nasalis of os frontale Approach Galea aponeurotica Origin Linea nuchalis suprema Approach Galea aponeurotica | Innervation
Innervation
| Shifting the scalp Raising the eyebrows and the forehead skin |
| M. temporoparietalis | Origin Fascia temporalis Approach Galea aponeurotica | Innervation
| No appreciable function |
| Muscles in the Range of the Eye Socket and the Palpebral Fissure | |||
M. orbicularis oculi
| Origin Crista lacrimalis and frontal process of the maxilla Approach Over the raphe palpebralis lateralis on Os zygomaticum Origin Lig. palpebrale mediale Approach Lig. palpebrale laterale Origin Crista lacrimalis of the os lacrimale Approach Canaliculi lacrimales into the pars palpebralis | Innervation
| Firm closure of the palpebral fissure Closure of the palpebral fissure, participation in blinking, and stabilization of the lower eyelid for forming the lacrimal lake Stimulation of lacrimation Outflow of lacrimal fluid |
| M. corrugator supercilii | Origin Os frontale above the sutura frontomaxillaris, glabella, arcus superciliaris Approach Skin above the middle third of the eyebrow, Galea aponeurotica | Innervation
| Shifting the eyebrow skin downwards medial |
| M. depressor supercilii | Origin Os frontale Approach Medial part of the eyebrow | Innervation
| Shifting the skin above the nasal root to a cross fold |
| Muscles in the Range of the Nose | |||
| M. procerus | Origin Os nasale, cartilago nasi lateralis Approach Skin of the glabella | Innervation
| Shifting the skin above the glabella downwards to a cross fold above the nasal root |
M. nasalis
| Origin Jugum alveolare of the canine until the fossa canina of the maxilla Approach Aponeurosis above the nasal root Origin Above the jugum alveolare of the lateral incisor Approach Skin of the nostril and the nasal septum | Innervation
| Pull the nostril and the nasal tip downwards, slight expansion of the nasal orifice, deepening of the nostril furrow |
| M. depressor septi nasi | Origin Above the alveolar process of the first incisor Approach Cartilaginous part of the nasal septum | Innervation
| Pull down of the nasal tip and expansion of the nasal orifices |
| M. levator labii superioris alaeque nasi | Origin Frontal process of the maxilla, margo infraorbitalis Approach Upper lip, skin of the nostrils | Innervation
| Raising of the nostrils and upper lip, expansion of the nasal orifices |
| Muscles in the Range of the Mouth | |||
| M. orbicularis oris M. buccinator | Origin Jugum alveolare of the upper and the lower canine Approach Skin of the upper and lower lip Origin Alveolar process of the maxilla in the range of the molars, crista buccinatoria in the range of the mandibular molars Approach Modiolus anguli oris, above the M. orbicularis oris in the upper and lower lip | Innervation
| Whole muscle: Narrowing and closing the mouth opening, producing lip tension Sole contraction of the Pars marginalis: Retract the red part of the lips inside Sole contraction of the Pars labialis: Bulging out the lips Participation in the act of mastication by moving the food from the oral vestibule between the row of teeth and into the oral cavity. Producing tension of the cheeks and the lips |
| M. zygomaticus major | Origin Os zygomaticum before the sutura zygomaticotemporalis Approach Skin of the corner of the mouth and the upper lip | Innervation
| Raising of the corner of the mouth outwards and up, deepening of the nasolabial furrow and the lid furrow |
| M. zygomaticus minor | Origin Os zygomaticum medial of the M. zygomaticus major Approach Skin of the sulcus nasolabialis | Innervation
| Raising of the corner of the mouth outwards and up |
| M. risorius | Origin Facia masseterica Approach Skin of the upper lip, mucous membrane of the vestibulum oris, modiolus anguli oris | Innervation
| Movement of the corner of the mouth to lateral, deepening of the nasolabial furrow, production of the cheek dimple |
| M. levator labii superioris | Origin Margo infraorbitalis of the maxilla above the foramen infraorbitale Approach Skin of the upper lip and the nostril, M. orbicularis oris | Innervation
| Raising of the upper lip, producing a fold above and sidewise to the nostril |
| M. levator anguli oris (M. caninus) | Origin Fossa canina below the foramen infraorbitale Approach Skin and mucous membrane of the corner of the mouth, Modiolus anguli oris, M. orbicularis oris | Innervation
| Raising of the corner of the mouth cranial-medial |
| M. depressor anguli Oris (M. triangularis) M. depressor labii inferioris (M. quadratus inferioris) | Origin Basis mandibulae of the tuberculum mentale up to the jugum alveolare of the first molar Approach Skin of the corner of the mouth, Modiolus anguli oris Origin Basis mandibulae below the foramen mentale (connection to the platysma) Approach Skin and mucous membrane of the lower lip, skin of the “chin bulge”, M. orbicularis oris | Innervation
| Movement of the corner of the mouth downwards Movement of the lower lip below and lateral, bulging the red part of lips |
| M. mentalis | Origin Jugum of the lateral incisor of the mandibula Approach Skin of the chin | Innervation
| Shift skin of chin upwards |
| Muscles in the Range of the Outer Ear | |||
| M. auricularis anterior | Origin Fascia temporalis, galea aponeurotica Approach Spina helicis of the ear | Innervation
| Minimal forward tension of the ear |
| M. auricularis superior | Origin Galea aponeurotica Approach Rear surface of the ear in the range of eminentia scaphae and the eminentia fossae triangularis, spina helicis | Innervation
| Minimal upward tension of the ear |
| M. auricularis posterior | Origin Mastoid process, Linea nuchalis superior Approach Eminentia conchae of the ear | Innervation
| Minimal backward tension of the ear |
| Muscles of the Neck | |||
| Platysma | Origin Basis mandibulae Approach Skin of the upper thoracic area | Innervation
| Facial part: Pulling down the corners of the mouth to lateral Part of the neck: Shifting the skin of the mandibula; Tension of skin and subcutaneous tissue |
6
Anatomy of the Muscles of Mastication
| Muscle | Origin/Approach | Innervation/Blood supply | Function |
| M. Masseter | Origin Pars profunda: Facies temporalis and inner side of the temporalis process of the os zygomaticum Pars superficialis: Facies lateralis and temporalis process of the os zygomaticum Approach Pars profunda: Ramus mandibulae up to the basis of the coronoideus process and the condylaris process Pars superficialis: Tuberositas masseterica on the surface of the angulus mandibulae | Innervation
| Strong lifting (adduction) of the lower jaw, support of the protrusion of the lower jaw |
| M. Temporalis | Origin Linea temporalis inferior of the facies externa of the os parietale and the facies temporalis of the os frontale, pars squamosa of the os temporale, facies temporalis of the os zygomaticum, facies temporalis of the os sphenoidale up to the crista infratemporalis Approach Coronoideus process of the mandibula to the trigonum retromolare | Innervation
| Ambilateral: Strong lifting (adduction of the lower jaw, retrusion of the lower jaw, support of protrusion (anterior part) Unilateral: Stabilization of the caput mandibulae, shift of the caput mandibulae forward and rotation to the contralateral side |
| M. Pterygoideus Medialis | Origin Pars medialis: In the fossa pterygoidea on the facies medialis of the lamina lateralis Pterygoidei process of the os sphenoidale Pars lateralis: Facies lateralis of the lamina lateralis processus pterygoidea of the os sphenoidale, processus pyramidalis ossis palatine, tuber maxillae Approach Tuberositas pterygoidea on the inner side of the angulus mandibulae | Innervation
| Ambilateral: Lifting (adduction) and protrusion of the lower jaw Unilateral: Grinding movement, shift of the caput mandibulare forward and rotation to the contralateral side |
| M. Pterygoideus Lateralis | Origin Caput superius: Facies temporalis and crista infratemporalis of the ala major of the os sphenoidale Caput inferius: Facies lateralis of the lamina lateralis processus pterygoidea of the os sphenoidale Approach Caput superius: Fovea pterygoidea, discus articularis Caput inferius: Fovea pterygoidea | Innervation
| Caput superius: Ambilateral: Fixation of the caput mandibulae Unilateral: Grinding movement, stabilization of the resting caput mandibulae Caput inferius: Ambilateral: Initial stage of jaw opening Unilateral: Grinding movement |
