Cryolipolysis

13 Cryolipolysis


W. Grant Stevens, Michelle Manning Eagan, Cory Felber, Deniz Sarhaddi, and Marc Vincent Orlando


Summary


Cryolipolysis, a controlled cooling treatment to reduce fat deposits, induces apoptosis in fat cells without damaging the surrounding tissues, muscles, nerves, or blood vessels. One of the most popular cryolipolysis patented technologies is Cool-Sculpting®.


Keywords: apoptosis, comprehensive contouring, CoolSculpting®, cryodermadstringo, cryolipolysis, debulking, DualSculpting®, liposuction, thermal injury


Key Points



• Fat cells are more susceptible to cold injury than surrounding tissues. Cryolipolysis extracts energy to cool fat cells and selectively trigger their natural cell death (apoptosis), while leaving surrounding cells and tissues unharmed.


• Patients tolerate the procedure well without the need for pain medication during treatment.


• Cryolipolysis requires little staff time for greater profitability. Once the treatment has started, little to no additional staff time is required until the end of the treatment.


• Body assessment is different for women and men: the goal for women is to have an hourglass shape, whereas the goal for men is to have a V-shaped back.


• Results are operator-dependent. The proper applicator choice and placement are key for optimal results.


• The first important step in patient evaluation is assessing skin laxity and the thickness of the adipose tissue.


• Locating the peaks of fat, the orientation of the fat deposit, and where the fat tapers are crucial to choosing the correct applicator and proper placement.


• CoolMax® (ZELTIQ Aesthetics, Inc.) is the most commonly used applicator for debulking. For comprehensive contouring, it is important to overlap the treatment areas.


• Patients should be weighed and photographed to clearly demonstrate pretreatment asymmetries and to document posttreatment results.


• Overall reduction in subcutaneous fat after treatment is approximately 20% to 25%. This is not a treatment for obesity.


• Immediate posttreatment massage can dramatically improve results, increasing results by up to 68% more fat reduction. The senior author (Dr. Stevens) recommends a 3-minute massage after every treatment. The first minute consists of vigorous massage and the second and third minutes consist of circular motions. Hand massage or a 2.5-minute Zimmer percussion (2500 pulses, 16hz, 120mJ) for 3 minutes to the treatment area can be used.


• Suction settings vary based on the applicator and the location of treatment. Increasing suction can improve applicator adherence. The cupped applicators, such as the CoolMini® (ZELTIQ Aesthetics, Inc.) and CoolAdvantage® (ZELTIQ Aesthetics, Inc.), require less suction than the flat-plated, vacuum-assisted applicators.


• Most areas will require two treatments to see the desired optimal results. The inner thighs can be very responsive and may only need one application.


• Patients should return for follow-up in 4 to 8 weeks.


• Temporary side effects may include ecchymosis, neuropraxia, swelling, and pain.


• Rare complications can occur and include contour irregularities and paradoxical adipocyte hyperplasia.


• Contraindications include cryoglobulinemia or paroxysmal cold hemoglobinuria. The effects on hernias have not been studied, but caution is advised adjacent to areas with possible hernia or previous surgical scarring. Applicator placement over hernias is not advised. Placement over enlarged thyroids is also not advised.


13.1 Introduction


Cosmetic surgical and nonsurgical procedures are on the rise, according to the Cosmetic Surgery National Data Bank Statistics by The American Society of Aesthetic Plastic Surgery (ASAPS) in 2016.1 Nearly 12.8 million procedures were performed in 2015. More than 1.9 million surgical and 10.8 million nonsurgical procedures were performed in 2015, with nonsurgical cosmetic procedures accounting for 42% of the total expenditures. Liposuction was the number one procedure performed on both men and women, with 396,048 procedures completed. In 2015, non-surgical fat reduction procedures increased by 18.7%.1


The majority of patients undergoing both surgical and non-surgical fat reduction is between 35 and 50 years of age. Non-surgical techniques in fat reduction offer patients an opportunity to decrease fat deposits without recovery, downtime, pain, or the risks associated with surgery and anesthesia.1,2


The most popular nonsurgical fat reduction system, which accounts for approximately 99% of nonsurgical body contouring performed at Marina Plastic Surgery, is CoolSculpting® (ZELTIQ Aesthetics, Inc.). We have used 10 other nonsurgical devices, and none of them compare to this system with regard to effectiveness, tolerability, efficient use of staff time, and patient satisfaction.


CoolSculpting employs controlled cooling to reduce fat deposits using a mechanism known as cryolipolysis. Fat cells are uniquely sensitive to cold and crystallize at a warmer temperature than water in surrounding tissues.3 Consequently, cryolipolysis induces apoptosis in fat cells and an inflammatory response in the treated tissue, without damage to overlying skin and surrounding muscles, nerves, and blood vessels. The Cool-Sculpting patented technology protects the skin from freezing while the adipose cells are exposed to therapeutic levels of cooling4 (images Fig. 13.1). Over the course of 2 to 4 months, the damaged fat cells are metabolized, resulting in gradual, permanent fat reduction in the treated region. The results have been shown to be long-term5 (images Fig. 13.2).


Fat reduction related to cold exposure was first described in 1970, with the observation of inflammatory nodules followed by fat necrosis and change in cheek contour of an infant who had been sucking on a popsicle.6 In 1980, the term equestrian cold panniculitis was coined to describe the inflammation of the inner thighs of female equestrians who rode horses in cold temperatures for at least 2 hours a day without insulated pants. A decrease in thigh fat was noted after resolution of the inflammation.7 Cryolipolysis was performed on abdominal porcine tissue, showing the clinical reduction of fat 90 days after the treatment8 (images Fig. 13.3). Several studies on various areas of the body and its effects on peripheral nerves and lipid levels have validated cryolipolysis as a safe and effective procedure for reducing subcutaneous fat.3,9,10,11,12





CoolSculpting is the only cryolipolysis machine in the United States approved by the Food and Drug Administration (FDA). In 2010, it was approved for use on the abdomen. Since then, the FDA has approved its use on the flanks (2012), thighs (2014), and chin (2015).13 Other areas can be treated at the discretion of physicians and with consent disclosing non-FDA-approved use. These areas include “bra-fat” rolls, inner thighs, knees, arms, axillary fat pads, and the male chest.


In addition to safety and efficacy, cryolipolysis has high tolerability, excellent patient satisfaction, and offers the potential for tremendous growth of a plastic surgery practice. From a business perspective, offering an alternative to surgical fat reduction with CoolSculpting has increased the number of new patients to the practice by attracting people who are interested in body contouring but who are reluctant to undergo invasive procedures. CoolSculpting has increased the number of male patients in our practice more than any other technology. Of the 66% new patients seen within 2 years, 62% had never had any aesthetic procedure. Forty percent of those who underwent CoolSculpting became established patients, undergoing additional aesthetic procedures within the next 3 years.14 Multiple concomitant procedures can be performed while a patient is undergoing cryolipolysis, such as hair transplantation, neuromodulator injections, filler injections, laser treatments and so on (see Video 1.1).14

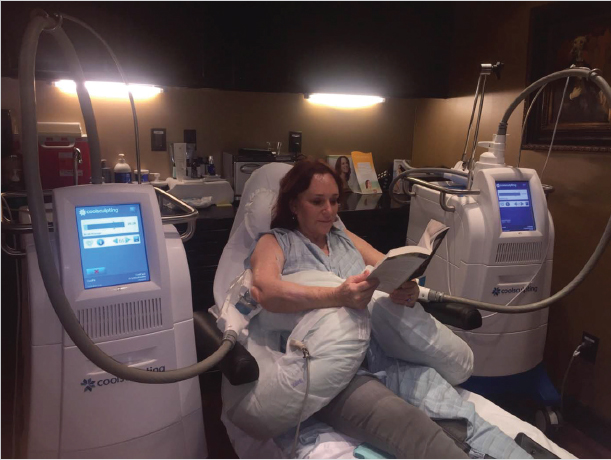

Cryolipolysis has been successfully integrated into the Marina Plastic Surgery practice. Unique to this system is the potential to use multiple devices simultaneously, a term called Dual-Sculpting® (Seattle Aesthetics), to reduce overall treatment times (images Fig. 13.4) Currently, there are nine devices available at the main office in Marina del Rey, California, and eight devices at the satellite offices in the Orange County offices. An average of 80 cycles are delivered each week in Marina Del Rey and 70 cycles in Orange County, totaling over 240,000 CoolSculpting procedures. Patients can reduce overall treatment time if multiple machines are being used simultaneously. Also, it is possible for multiple concomitant procedures to be performed while a patient is undergoing cryolipolysis, such as hair transplantation, neuromodulator injections, filler injections, laser treatments, and so on (images Fig. 13.5). CoolSculpting is convenient and efficient for both the patient and the clinician.14


Dr. W. Grant Stevens (author) has been a pioneer in unlocking the potential of this technology. The treatment plans have ranged from one to two cycles per treatment area, with optimal results attained after at least two cycles per area. Comprehensive contouring is a term coined by Dr. Stevens that describes a strategy to debulk fat and sculpt the body.


Comprehensive contouring can produce liposuction-like results and has even proved useful in softening contour irregularities from previous liposuction procedures14 (images Fig. 13.6). This technique utilizes multiple, varying applicators, a variable number of cycles depending on the treatment area, and overlapping treatment sites. With the addition of the nonsuction flat panel and the mini-cupped applicators, clinicians are able to target nearly any desired area. As the technology continues to advance, more applicator variations will assist the clinician and patient in achieving the desired nonsurgical fat reduction in more regions.





Consequently, cryolipolysis can freeze fat cells without inducing damage to overlying skin and surrounding muscles, nerves, and blood vessels. The exposure to cold induces apoptosis in the fat cells and an inflammatory response in the treated tissue. Over the course of 2 to 4 months, the damaged fat cells are cleared by the body, resulting in gradual, permanent fat reduction in the treated region. Several studies on various areas of the body, cholesterol, and peripheral nerve effects have shown cryolipolysis to be a very safe and effective procedure for the nonsurgical reduction of subcutaneous fat.3,9,10,11,12


In addition to safety and efficacy, cryolipolysis has high tolerability, excellent patient satisfaction, and brings potential for tremendous business growth to a plastic surgery practice. Cryolipolysis has been successfully integrated into the Marina Plastic Surgery practice, attracting new patients who are interested in body contouring but not yet ready for invasive procedures. Of the 66% new patients, 62% had never had any aesthetic procedure. Forty percent of those who underwent CoolSculpting became established patients, undergoing other aesthetic procedures. CoolSculpting has increased the number of male patients to the practice greater than any other technology.14 Unique to this practice is the multiple machines available for each patient to improve treatment times.


The idea of cryolipolysis stems from two papers that describe fat reduction related to cold temperatures.6,7 The first was fat reduction of the cheeks in infants after prolonged sucking on popsicles.6 There was an altered cheek structure noted after the resolution of the inflammation. The second study referred to a group of female equestrians who were noted to ride horses in the near freezing temperatures for at least 2 hours without insulated pants. Beacham, et al.7 described the resulting inflammation of the inner thighs as “equestrian cold panniculitis.” A decrease in fat was noted in these areas. The technology of controlled-cooling therapy to reduce fat was a huge undertaking. The most difficult part was to freeze the fat without affecting the skin.


With the addition of the nonsuction, flat-panel, and mini applicators, clinicians are able to target nearly any desired area. Comprehensive contouring results in liposuction-like results (images Fig. 13.6).


From a business perspective, offering an alternative to surgical fat reduction with CoolSculpting has increased the number of new patients to the practice, specifically men who are normally averse to cosmetic treatments, and neophytes reluctant to undergo invasive procedures. These patients often will undergo other procedures, because they have seen good results with CoolSculpting. Multiple procedures can also be done while the patient is undergoing cryolipolysis, such as hair transplantation, neuromodulator injections, filler injections, laser treatments, and so on.14 Cryolipolysis is an excellent nonsurgical body contouring procedure because of its high safety, tolerability, efficacy, and business growth potential.


This chapter will cover the patient selection, technique, postprocedural care, typical results, and possible complications related to cryolipolysis.


13.2 Patient Selection


Proper patient selection is essential to achieving an optimal result. Cryolipolysis has been proven to be safe and effective, but it is not the fat-reduction strategy of choice for all patients.

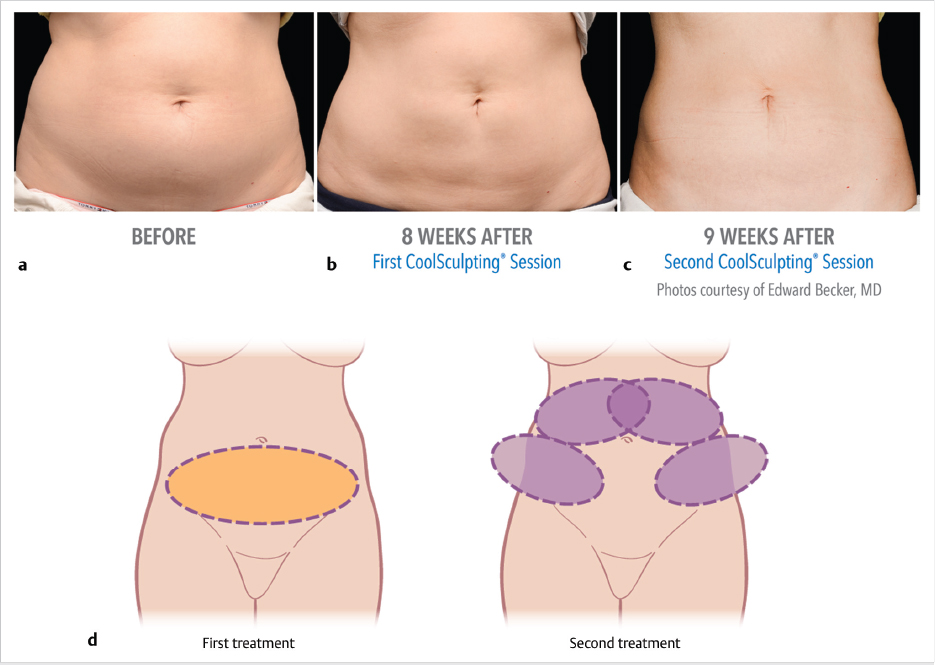

All patients should be counseled for a treatment-to-transformation. Comprehensive contouring is the ideal treatment plan for total body contouring (images Fig. 13.7). The patient should be aware of the optimal number of cycles required for desired fat reduction. Patients who elect to undergo suboptimal treatment, whether because of personal desire or financial constraints, should be informed of the likely suboptimal results. One should consider avoiding treatment in such a scenario, because both the patient and the clinician may be disappointed with the fat-reduction outcome.


Two crucial factors to assess during the patient examination are (1) local skin laxity and (2) thickness of adipose tissue. Gender and ethnic background do not affect outcomes. To use the vacuum-assisted application heads, tissue laxity should allow for adequate draw into the applicator. Areas with dense cutaneous attachments near bony prominences, such as the iliac crest and ribs, may have less mobility. For areas with less skin laxity, the nonsuction, flat-panel applicators are suitable. The nonsuction applicators can also be used to help smooth severe liposuction irregularities, because the prominent fat peaks are cooled more than the depressions. This management, however, is only attempting to improve irregular contours.


Patients with moderate to severe skin laxity often demonstrate the phenomenon of cryodermadstringo, or skin tightening14,15,16 (images Fig. 13.8).


Patients with thick adipose tissue will require debulking in addition to sculpting, and patients should be made aware that debulking necessitates more than one treatment cycle. Furthermore, treatment of one area may give the illusion of increased adiposity in an adjacent, untreated area; therefore, the comprehensive plan should include treatment of an entire region to avoid deformities or irregularities.17 For patients who only want or only can afford less than ideal treatment, it may be best to avoid treatment altogether, because both the patient and the clinician will be unsatisfied with the results.


Potential treatment areas should be examined for the presence of open wounds or infection. These areas should be avoided, because tissue injury with cooling can worsen the condition. Patients with prior abdominal surgeries should be evaluated for abdominal hernias, which would present a contraindication to treatment in that area. Any large skin incisions or scars should be noted, because they can draw into the vacuum-assisted device, or they can cause diffusion of the cooling through the flat-panel applicators, which may enhance scar depression. Treatment should be altogether avoided in patients with cryoglobulinemia or paroxysmal cold hemoglubinuria; although the effects of CoolSculpting in patients with these disorders has not been studied or reported, it is reasonable to assume that induced cooling will exacerbate these conditions. Also, when using the CoolMini® (ZELTIQ Aesthetics, Inc.) to treat the submental region, an enlarged thyroid should be avoided.


13.3 Technique

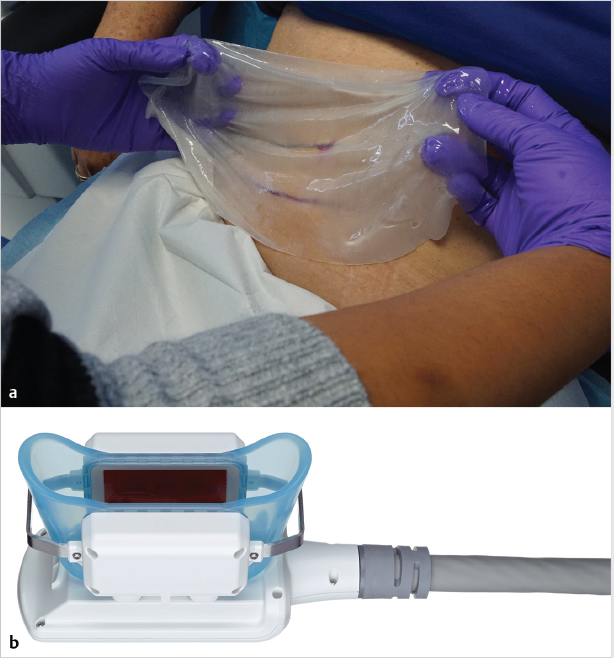

The CoolSculpting system is an FDA-approved device for cryolipolysis on the abdomen, flank, thighs, submental area, and other flexible treatment parameters4 (images Fig. 13.9) . The control console contains a thermoelectric cooling element that modulates the temperature of two cooling plates, which are housed within a cup-shaped applicator of variable size and configuration attached to the console by an umbilical18 (images Table 13.1). The control unit also regulates the rate of energy extraction (mW/cm2), which is expressed as the cooling intensity factor (CIF). In most clinical studies, the CIF falls between 0 and 5 °Celsius. The vacuum applicators apply negative pressure when applied across the specified treatment area. The adipose tissue is drawn between the cooling plates, which maintain a variable, preset temperature between -10 and -13 °Celsius.19 The negative pressure of the applicator limits local cutaneous blood flow; this, in conjunction with selective energy extraction from the adipose tissue, eliminates convective heat exchange and leads to therapeutic cooling and cryolipolysis. The nonvacuumed applicators lack draw into the applicator and utilize cooling alone for fat reduction; thus, they require slightly longer treatment times.
