Contact Dermatitis and Patch Testing





Key Words

contact dermatitis, allergic reaction, nickel allergy, cement dermatitis, natural rubber latex, irritant contact dermatitis, occupational dermatitis, patch testing, allergy testing




Contact dermatitis is an eczematous dermatitis caused by exposure to substances in the environment. Those substances act as irritants or allergens and may cause acute, subacute, or chronic eczematous inflammation. To diagnose contact dermatitis one must first recognize that an eruption is eczematous. Contact allergies often have characteristic distribution patterns indicating that the observed eczematous eruption is caused by external rather than internal stimuli. Elimination of the suspected offending agent and appropriate treatment for eczematous inflammation usually serve to manage patients with contact dermatitis effectively. However, in the many cases in which this direct approach fails, patch testing is useful.


It is important to differentiate contact dermatitis caused by irritation from that caused by allergy. An outline of these differences is listed in Table 4.1 .



TABLE 4.1

Contact Dermatitis: Irritant Versus Allergic












































Irritant Allergic
People at risk Everyone Genetically predisposed
Mechanism of response Nonimmunologic; a physical and chemical alteration of epidermis Delayed hypersensitivity reaction
Number of exposures Few to many; depends on individual’s ability to maintain an effective epidermal barrier One or several to cause sensitization
Nature of substance Organic solvent, soaps Low-molecular-weight hapten (e.g., metals, formalin, epoxy)
Concentration of substance required Usually high May be very low
Mode of onset Usually gradual as epidermal barrier becomes compromised Once sensitized, usually rapid; 12–48 h after exposure
Distribution Borders usually indistinct May correspond exactly to contactant (e.g., watchband, elastic waistband)
Investigative procedure Trial of avoidance Trial of avoidance, patch testing, or both
Management Protection and reduced incidence of exposure Complete avoidance




Severe Occupational Contact Dermatitis


Occupational contact dermatitis occurs when a chemical contacts the skin causing a rash. Estimates indicate that the skin of 13 million workers in the United States is exposed to chemicals. Cutaneous occupational disease is the most common occupational related disease, accounting for annual costs of over 1 billion dollars annually. To study occupations at risk, investigators from Copenhagen University examined 1000 consecutive patients. Females who were cooks, butchers, beauticians, bakers, and hairdressers were at risk for occupationally induced dermatitis at rates of 23.3 to 96.8 cases per 10,000 workers per year. Men who worked as painters, cooks, mechanics, locksmiths, and bakers developed occupational dermatitis at rates of 16.5 to 32.3 cases per 10,000 workers per year ( Fig. 4.1 ).

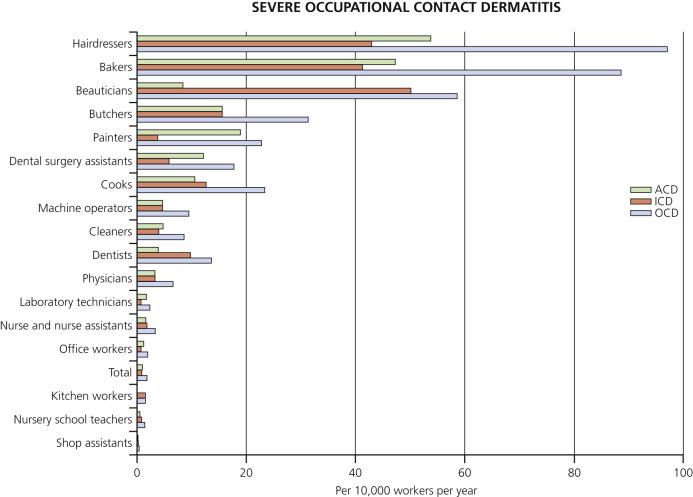

FIG 4.1


Severe occupational contact dermatitis. Incidence rates for the cases with severe occupational contact dermatitis (OCD) and those further specified as having either allergic contact dermatitis (ACD) or irritant contact dermatitis (ICD) within specified occupational groups for females.

(From Schwensen JF, Friis UF, Menné T, Johansen JD. One thousand cases of severe occupational contact dermatitis. Contact Dermatitis 2013;68(5):259–68.)




Irritant Contact Dermatitis


Irritation of the skin is the most common cause of contact dermatitis and is increasing in prevalence. The epidermis is a thin cellular barrier with an outer layer composed of dead cells in a water–protein–lipid matrix. Any process that damages any component of the barrier compromises its function, and a nonimmunologic eczematous response may result. Extraction of lipids from the skin can be caused by repeated use of strong alkaline soap or industrial exposure to organic solvents. Acids may combine with water in the skin and cause dehydration. When the skin is compromised, exposure to even a weak irritant sustains the inflammation. The intensity of the inflammation is related to the concentration of the irritant and the length of exposure. Mild irritants cause dryness, fissuring, and erythema; a mild eczematous reaction may occur with continuous exposure. Continuous exposure to moisture in areas such as the hand, the diaper area, or the skin around a colostomy may eventually cause eczematous inflammation. Strong chemicals may produce an immediate reaction. Skin lesions of irritant contact dermatitis are confined to the cutaneous area of exposure, unlike allergic contact dermatitis where the rash extends beyond the area of exposure. Figs. 4.2 through 4.5 show examples of irritant dermatitis.




FIG 4.2


Irritant contact dermatitis. Chronic exposure to soap and water has caused subacute eczematous inflammation over the backs of the hands and fingers.



FIG 4.3


Irritant contact dermatitis. A new mother who is exposed to wet diapers followed by frequent washing has developed a diffuse erythema and dry, cracked, fissured skin. Itching is intense.



FIG 4.4


Irritant contact dermatitis. Repeated cycles of wetting and drying resulted in irritant dermatitis.



FIG 4.5


Eroded irritated diaper dermatitis that responded well to 5% cholestyramine in petrolatum applied with each diaper change. This compound sequesters stool bile acids and promotes healing of recalcitrant diaper rashes.


Patients vary in their ability to withstand exposure to irritants. Some people cannot tolerate frequent hand washing whereas others may work daily with harsh cleaning solutions without any difficulty.



Management of Irritant Contact Dermatitis




  • 1.

    Avoid exposure to irritants by using protective equipment, such as gloves.


  • 2.

    Topical steroids are used to initially control inflammation but there is some evidence that they may compromise barrier function. Some experts recommend that the use of topical steroids should be avoided.


  • 3.

    Moisturizers used generously and frequently increase skin hydration, and their lipid component improves the damaged skin barrier. Lipid-rich moisturizers both prevent and treat irritant contact dermatitis.


  • 4.

    Barrier creams containing dimethicone or perfluoropolyethers, cotton liners, and softened fabrics prevent irritant contact dermatitis.


  • 5.

    Cool compresses are used for acute inflammation. They suppress vesiculation and decrease inflammation.


  • 6.

    Hands should be washed in cool or tepid water.


  • 7.

    Repeated low-level ultraviolet (UV) exposures may be effective for long-term resistant cases.


  • 8.

    Even after the skin appears normal, it takes approximately 4 months or more for barrier function to normalize.






Allergic Contact Dermatitis


Allergic contact dermatitis is a delayed type IV inflammatory reaction that follows absorption of antigen applied to the skin and recruitment of previously sensitized, antigen-specific T lymphocytes into the skin. The antigens are usually low-molecular-weight substances that readily penetrate the stratum corneum. Most contact allergens require repeated exposure before sensitization occurs. Strong antigens, such as poison ivy, require only two exposures for sensitization.


Interaction between antigen and T lymphocytes is mediated by antigen-presenting epidermal cells (dermal dendritic cells and Langerhans cells) and is divided into two sequential phases: an initial sensitization phase and an elicitation phase.


Phases


Sensitization Phase


An antigen applied to the skin surface penetrates through the epidermal barrier (stratum corneum) and activates the innate immune system, through keratinocyte release of cytokines (interleukin [IL]-1α, IL-1β, tumor necrosis factor alpha, and others). Langerhans cells and dermal dendritic cells take up the allergen, migrate to regional lymph nodes and activate antigen-specific T cells, which in turn enter the circulation and return to the site of exposure. Dermal dendritic cells are effective in recruiting naive T cells in the lymph node, inducing antigen-specific sensitization, while Langerhans cells stimulate regulatory T cells and promote tolerance to antigens.


Elicitation Phase


The elicitation phase occurs in previously sensitized patients. Upon re-exposure to the allergen, sensitized T cells activate an inflammatory cascade, producing intense itch and rash. Allergic contact dermatitis develops within 12 to 48 hours of an antigen exposure and persists for 3 or 4 weeks.


Cross-Sensitization


An allergen, the chemical structure of which is similar to that of the original sensitizing antigen, may cause inflammation because the immune system is unable to differentiate between the original and the chemically related antigen. For example, the skin of patients who are allergic to balsam of Peru, which is present in numerous topical preparations, may become inflamed when exposed to the chemically related benzoin in tincture of benzoin.


Systemically Induced Allergic Contact Dermatitis


Systemic contact dermatitis results from the exposure to an allergen by ingestion, inhalation, injection, or percutaneous penetration in a person previously sensitized to the allergen by cutaneous contact. Patients allergic to poison ivy develop diffuse inflammation following the ingestion of raw cashew nuts ( Fig. 4.6 ). Cashew nut oil is chemically related to the oleoresin of the poison ivy plant. Persons allergic to balsam of Peru and/or fragrance mix benefit from dietary avoidance of balsams. Systemic contact dermatitis should be suspected when patients have refractory or persistent allergic contact dermatitis, despite avoiding the allergens. The most common clinical presentation is vesicular hand dermatitis due to ingestion of metals (nickel, cobalt, and chromium), balsam of Peru, garlic, and food preservatives. Pruritic papules on the extensor surface of the elbows and knees can also occur. Prior sites of contact dermatitis can re-inflame after ingestion of an allergen. Sesquiterpene lactones such as herbs, spices, and flowers such as chamomile, chicory, lettuce, and echinaceas can flare eczema. Aspartame can cause systemic contact dermatitis in formaldehyde-allergic patients because it is converted to formaldehyde in the liver. Sorbic acid found in strawberries, prunes, and cheeses can cause perioral dermatitis. Garlic can cross-react with balsam of Peru and can cause chronic and vesicular hand eczema. Propolis allergy is increasing in prevalence and can cross-react with balsam of Peru. Propylene glycol is used as a thickening agent in foods and may cause systemic contact dermatitis.




FIG 4.6


Systemically induced allergic contact dermatitis. Diffuse allergic reaction occurring in a patient allergic to poison ivy who has ingested raw cashew nuts, the oil of which cross-reacts with the oleoresin of poison ivy.


Clinical Presentation


Shape and Location.


The shape and location of the rash are the most important clues to the cause of the allergen ( Table 4.2 ). The pattern of inflammation may correspond exactly to the shape of the offending substance ( Figs. 4.7 to 4.12 ). The diagnosis is obvious when inflammation is confined specifically to the area under a watchband, shoe, or elastic waistband. Plants (e.g., poison ivy) produce linear lesions.



TABLE 4.2

Contact Dermatitis: Distribution Diagnosis

Adapted from Belsito DV. A sherlockian approach to contact dermatitis. Dermatol Clin 1999;17(3):705–13, x.


























































Location Material
Scalp and ears Shampoos, hair dyes, topical medicines, metal earrings, eyeglasses, rubber ear plugs
Face Cosmetics (preservatives, emulsifiers, fragrances)
Acne medications (e.g., benzoyl peroxide), aftershave lotions
Respirators, masks, aerosolized mists (machinists), volatile organic substances (e.g., amine hardeners in the plastic industry)
Chemicals (hair dyes) applied to scalp spread to face, ears, and neck – spares scalp (scalp is resistant)
Airborne allergens (poison ivy from burning leaves, ragweed)
Photoallergic reactions – spare upper lip and have sharp cut-off at jawline (sunscreen ingredients – oxybenzone, benzophenone no. 3)
Eyelids Nail polish (transferred by rubbing), cosmetics, contact lens solution, metal eyelash curlers, make-up sponges (rubber)
Lower lids (topical medications)
Periocular area (goggles)
Upper and lower eyelids Cause is usually not allergic (atopic dermatitis, seborrheic dermatitis, psoriasis)
Facial and eyelid accentuation Airborne contact dermatitis (ragweed, volatile organic substances, fragrances, chemicals in smoke)
Products applied to hands and transferred to face (nail enamels)
Mucosal Most patients allergic to allergens applied intraorally have cheilitis but not stomatitis; individual who reacts to nickel, mercury, palladium, or gold in dental amalgams presents with a systemic contact dermatitis with or without a localized stomatitis
Neck Necklaces (metals, exotic woods), airborne allergens (ragweed), perfumes, aftershave lotion; cosmetic allergens; textile dermatitis (dyes, formaldehyde resins in clothing)
Trunk Textile (sparing of axillary and undergarment areas)
Azoaniline dyes (color clothing)
Urea formaldehyde resins (wrinkle-resistant clothing)
N ote : p -Phenylenediamine (PPD) and formaldehyde are not adequate screens for patch testing for allergy to textile dyes and resins
Rubber allergens: Elasticized waist bands, spandex bras
N ote : Standard rubber patch test allergens may be negative; patch test with a portion of elastic band from a garment that has been bleached
Generalized reactions
Fragrances, preservatives in moisturizing lotions, topical medication, sunscreens; poison ivy; plants (phototoxic reactions); metal belt buckles
Laundry detergents rarely cause allergic contact dermatitis
Scattered, generalized dermatitis “Systemic contact dermatitis” – an individual who has been sensitized topically to an allergen and is subsequently re-exposed systemically (drug/chemical introduced intramuscularly, intravenously, orally, rectally, or vaginally), foods, medical or dental devices that contact mucosal surfaces or that have been implanted surgically into body
Cinnamic aldehyde and balsam (cosmetics, topical medications, suppositories, dental liquids, and flavorings) or parabens (food preservatives)
Contaminants in foodstuffs, such as nickel
Arms Same as hands; watch and watchband
Photosensitive process (rash ends at mid-upper arm)
Soap, moisturizing creams
Fingertips Hairdressers – glyceryl monothioglycolate in permanent solutions or p -phenylenediamine in hair dyes
Nurses – glutaraldehyde in disinfectants
Dental and orthopedic personnel – glue (methylmethacrylate)
Many chemicals penetrate standard gloves
Axillae Deodorant (axillary vault), clothing (axillary folds)
Hands Soaps and detergents, foods, spices, poison ivy, industrial solvents and oils, cement, metal (pots, rings), topical medications, rubber gloves in surgeons
Genitals Poison ivy (transferred by hand), rubber condoms, diaphragms, pessaries
Anal region Hemorrhoid preparations (benzocaine, Nupercaine)
Lower legs, popliteal fossa, and inner thigh Topical medication (benzocaine, lanolin, neomycin, parabens)
Fragrances, preservatives, and vehicles in moisturizers and cosmetics
Dyes in pantyhose (especially blue disperse dyes in darker-colored hose and disperse yellow no. 3 in skin-colored hose)
Textiles
Feet Shoes – p-tert -butylphenol formaldehyde resin (a component of shoe glues), rubber components, and chromate (used to tan leather)
Cement spilling into boots



FIG 4.7


Allergic contact dermatitis. Eye cosmetic allergy. Open patch testing with the cosmetic proved the diagnosis. Routine patch testing was positive for fragrance mix.



FIG 4.8


Allergic contact dermatitis. Adhesives allergy.



FIG 4.9


Allergic contact dermatitis. Potassium dichromate allergy (leather watchband).



FIG 4.10


Allergic contact dermatitis. Exposure to poison ivy resulted in an intense acute inflammation.



FIG 4.11


This patient developed an allergy to isothiazolinone in his moisturizer.



FIG 4.12


This patient had an allergy to paraphenylenediamine allergy from a henna tattoo.


Unfortunately most allergic reactions do not conform precisely to the areas contacting the allergen. A woman allergic to an ingredient in her facial cosmetic typically presents with a patchy facial eczema, rather than with a diffuse dermatitis involving all areas of the face to which the cosmetic was applied. An allergen may be spread to other sites by inadvertent contact. The scalp, palms, and soles are resistant to allergic contact dermatitis and may show only minimal inflammation despite contact with an allergen that produces dermatitis in adjacent areas.


Aeroallergens inflame the exposed skin and spare clothed areas. Clothing allergens cause dermatitis of clothed areas. Table 4.2 lists substances that are common causes of inflammation in specific body regions. Table 4.3 lists substances commonly encountered in specific professions.



TABLE 4.3

Contact Dermatitis: Occupational Exposure




































Occupation Irritants Allergens
Beauticians Wet work (shampoos) Hair tints, permanent solution, shampoos (formaldehyde)
Construction workers Fuels, lubricants, cement Cement (chromium, cobalt), epoxy, glues, paints, solvents, rubber, chrome-tanned leather gloves
Chefs, bartenders, bakers Moist foods, juices, corn, pineapple juice Orange and lemon peel (oil of limonene), mango, carrot, parsnips, parsley, celery; spices (e.g., capsicum, cinnamon, cloves, nutmeg, vanilla)
Farmers Milker’s eczema (detergents), tractor lubricants and fuels Malathion, pyrethrum insecticides, fungicides, rubber, ragweed, marsh elder
Forest products industry Wet work (wood processing) Poison ivy and oak, plants growing on bark (e.g., lichens, liverworts)
Medical and surgical personnel Surgical scrubbing Rubber gloves, glutaraldehyde (germicides), acrylic monomer in cement (orthopedic surgeons), penicillin, chlorpromazine, benzalkonium chloride, neomycin
Printing industry Alcohols, alkalis, grease Polyfunctional acrylic monomers, epoxy acrylate oligomers, isocyanate compounds (all used in a new ink-drying method)


The failure of an eczematous dermatitis to respond to standard treatments and worsening of a previously stable dermatitis also suggest that the dermatitis is allergic and not irritant.


Intensity and Patterns.


The intensity of inflammation depends on the degree of sensitivity and the concentration of the antigen. Strong sensitizers such as the oleoresin of poison ivy may produce intense inflammation in low concentrations, whereas weak sensitizers may cause only erythema. The appearance also depends on location and duration. Acute inflammation appears as macular erythema, edema, vesicles, or bullae. Chronic inflammation is characterized by lichenification, scaling, or fissures. Contact allergies may have noneczematous patterns that include the cellulitis-like appearance of dermal contact hypersensitivity, lichenoid variants, contact leukoderma, contact purpura, and erythema multiforme.


Airborne Contact Dermatitis.


Acute and chronic dermatitis results from allergens and irritants suspended in the air. The face, neck, V region of the chest, forearms, and hands, including the palms are commonly affected areas. Allergens fall on surfaces and clothing and when patients touch the surfaces, the palms become involved. Allergens can also collect on the upper eyelids, posterior ears and submandibular regions. These locations assist in differentiating an airborne contact dermatitis from a photodermatitis, since these areas are not photodistributed.


Sprays, perfumes, chemical dusts, and plant pollen (e.g., sesquiterpene lactones found in ragweed, goldenrod, sunflowers, and chrysanthemums) are possible sources. Almost all published causes are occupationally related ( Table 4.4 ). The sources are drugs (e.g., by crushing drugs for the elderly), plants (e.g., urushiol found in poison ivy, poison oak and poison sumac), natural resins and woods, plastic, metals (nickel, silver, mercury, gold, arsenic salts), rubber and glue components, cement (potassium dichromate) and preservatives (methylisothiazolinone and methylchloroisothiazolinone).



TABLE 4.4

Common Causative Agents of Airborne Contact Dermatitis and Associated Products and Occupations at Risk

From Schloemer JA, Zirwas MJ, Burkhart CG. Airborne contact dermatitis: common causes in the USA. Int J Dermatol 2015;54(3):271–4.




















































Agent Products Occupations/Industries
Ammonia Disinfectants, fertilizers, bleaching agents, baking flour Farming, homemaking, cleaning services
Chrome Cement, concrete mix, cosmetics, paint, alloy metals Construction, building, stonemasonry, metal working, paper industry
Epoxy resin Glues, adhesives, paint, polyvinyl chloride products, electric insulators, plastics Painting, paint manufacture, construction, building, carpentry
Fiberglass Boats, cars, aircraft, building insulation, clothing, helmets Automotive and aviation industries, insulation manufacturing, building, construction
Formaldehyde Fabric finishes, cosmetics, toiletries, embalming, disinfectants, paper products Textile industry, sanitary paper production, builders, construction
Gold Jewelry, plating, cell phones, electronics, dental and orthodontic appliances Jewelry, plating, photography, electronics manufacture, dentistry and dental hygiene
Isothiazolinones Preservatives in cleaning products, cosmetics, paint Homemaking, cleaning services, health care, painting
Natural rubber latex Tires, gloves, adhesive tape, balloons, condoms, paint Latex product manufacture, health care, hairdressing
Nickel Plating, alloy metals including stainless steel, coins Refining, electronics manufacture, hairdressing, cashier work, metal work
Medications Azathioprine, budesonide, famotidine, lansoprazole, methotrexate Pharmacy, pharmaceutical manufacture, health care
Wood dust Tropical and domestic wood Carpentry, building, construction, furniture manufacture, sawmills
