3 Radiographic Anatomy



Molly Vora and Laura Lewallen


Abstract


This chapter provides an overview of the pertinent musculoskeletal anatomy of the hand and wrist. Radiographic landmarks and descriptions of various views are provided. Several common fracture patterns are introduced, with representative radio-graphic images.




3 Radiographic Anatomy



I. Bony Anatomy of the Hand


Fig. 3.1 Bony anatomy of the hand. C: Capitate; H: Hamate; L: Lunate; P: Pisiform; S: Scaphoid; TPD: Trap-ezoid; TPM: Trapezium; TQM: Triquetrum.


II. Radiograph Views




  • Three view of the wrist should be obtained: Posteroanterior (PA), lateral, and oblique views (► Fig. 3.2).



  • Posteroanterior (PA) view—obtained with wrist and elbow at shoulder height; the radius and the ulna are parallel (► Fig. 3.2a).




    • Able to see the extensor carpi ulnaris groove radial to the midportion of the ulnar styloid.



  • Lateral view—obtained with elbow adducted to the side; shoulder, elbow, and wrist are in plane (► Fig. 3.2b).




    • Perpendicular to the PA view.



  • Oblique view—hand is rotated externally 45 degrees from the PA position with fingers extended (► Fig. 3.2c).




    • Helpful in the trauma setting, including distal radius fractures, metacarpal fractures.

Fig. 3.2 (a) Posteroanterior (PA), (b) lateral, and (c) oblique views of the wrist.


III. Joint Spaces: Parallelism and Symmetry




  • The joint spaces of the wrist normally have a width of 2 mm or less (► Fig. 3.3).




    • Radiocarpal joint is slightly wider than the rest, carpometacarpal joints are slightly narrower.



    • The capitolunate joint is used as reference to which other joint spaces can be compared.

Fig. 3.3 (a) Joint spaces of the wrist. Arrow is pointing to capitolunate joint. (b) Observe the radiocarpal, intercarpal, and carpometacarpal joint spaces.


IV. Carpal Arcs




  • Gilula’s lines are three arcs drawn on the PA view, which are used to assess the alignment of the carpal bones (► Fig. 3.4):




    • First arc—smooth curve outlining the scaphoid, lunate, and triquetrum.



    • Second arc—the distal concave surfaces of the same bones.



    • Third arc—proximal curvature of the capitate and hamate.



    • Break in arc indicates fracture, ligamentous injury, and lunate/perilunate dislocation.

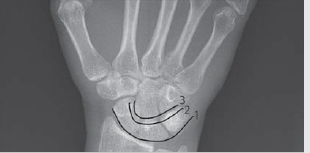

Fig. 3.4 Gilula’s lines are three arcs drawn on the posteroanterior (PA) view. 1, first arc; 2, second arc; 3, third arc.


V. Shape of Carpal Bones




  • Proximal row




    • Scaphoid: Shaped like a twisted peanut.




      • Largest bone in the proximal carpal row.



    • Lunate: Crescent-shaped




      • Normally trapezoidal in shape, but can appear triangular if displaced.



    • Triquetrum: Three-sided.



    • Pisiform: Pea-shaped.



  • Distal row




    • Trapezium: Irregular-shaped four-sided.



    • Trapezoid: Four-sided



    • Capitate: Largest bone in the distal carpal row.



    • Hamate: Shaped like a hook.
