Thinning and Tailoring




Purposes of Skin Flap Surgery


The purposes of flap transfer are classified into four categories: surface coverage; volume restoration; framework creation; and functional reconstruction. Category one is surface coverage of the defect without the need for significant thickness. In clinical situations, since every flap has some degree of thickness, surface coverage inevitably is associated with provision of volume (category two). The third category is reconstruction of a framework . Transfer of vascularized bone, such as the iliac bone or fibula, is classified into this category. The fourth category is functional reconstruction , aiming to restore defective function. Muscle flap transfer for reanimation of the face and vascularized nerve flap transfer are examples of this category.


In this chapter, the first, second, and third categories of flap transfer, especially in relation to free flap transfer, are described, with a focus on adaptation of the shape to the needs of the recipient defect.




Geometry of the Donor Site and the Flap


From a geometric viewpoint, the flap can be regarded as a 3-dimensional model specified by the XYZ coordinates ( Fig. 26.1 ). Each axis corresponds to the specific properties of the flaps for clinical use. The origin O indicates the surface projection point of the vascular pedicle entry point to the flap mass, and the XY plane coincides with the surface of the skin flap. In the XY plane, the Y-axis represents the direction of approximate axiality of the flap circulation. The Z-axis characterizes the thickness of the skin flap. Point P corresponds to the branching point of the pedicle vessel of the flap from the main vessel and is usually found deep to the XY plane. Point P′ is the projection of point P to the XY plane. The distance between points P′ and O denotes the approximate length of the vascular pedicle of the flap.

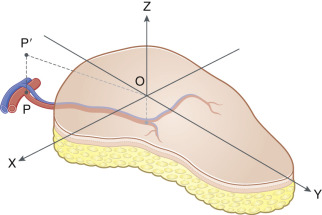

Figure 26.1


Three-dimensional description of the flap.

The X and Y axes are on the skin surface of the donor site. The Y represents the axiality of the circulation of the specific donor site. The point O represents the vascular insertion point to the flap projecting to the surface of the skin. The point P is the branching point of the main vessel to the flap pedicle, and the point P′ is the projection of the point P to the XY plane.


Clinically, the vascular pedicle of the flap will contract after elevation and separation of the flap from the donor site. Since anastomosis between the recipient and donor vessel should be performed without tension, it is preferable to underestimate the potential length of the pedicle. Therefore, the distance P′O, which is actually shorter than the length of the pedicle that is harvested, represents the approximate clinical value.


In summary, the morphologic features of the flap can be described by 3-dimensional variables (X, Y, Z) as well as the distance and direction of P′O.




General Principles in Shaping and Molding a Flap


Free Flap Reconstruction


The first step in flap surgery is to evaluate which categories of reconstruction, surface, volume, framework, or function are required for the specific defect. For example, breast reconstruction requires considerable volume as well as surface coverage, whereas reconstruction for a burn scar contracture of the neck needs surface coverage with minimal volume, and a craniomaxillofacial defect frequently requires some skeletal framework with volume reconstruction.


The second step is to choose the recipient vessels to be anastomosed easily and safely, and estimate the required length of the flap’s pedicle vessel. Since the maximum length of the pedicle vessel for each specific flap to be harvested is nearly constant, flap selection should take this important criterion into consideration.


The third step is to assess the match in color and texture of the flap and the recipient site, and to balance the outcomes that can be anticipated at the recipient site with the morbidity that will be created at the donor site.


The donor site for the flap is selected after consideration of these detailed requirements for reconstruction. Once the donor site for flap transfer has been decided, the position of point O, which is detected using the Doppler flowmeter or estimated from the anatomic surface landmarks, is marked on the donor skin. In addition, the X and Y axes are marked across point O with reference to the approximate axiality of the blood flow in the skin, which is usually parallel to the major axis on the extremities and to the direction of the ribs on the back and the chest wall, radiating from the umbilicus on the abdomen, and radiating from the femoral triangle in the inguinal area.


The location of point P is predicted from the palpable point of the major arteries from the surface and point P′ is also marked on the XY plane of the donor skin. For example, the axillary artery gives off the subscapular artery that provides blood supply to the scapular flap and the thoracodorsal artery that provides blood supply to the latissimus dorsi myocutaneous flap; the femoral artery gives off branches such as the superficial circumflex iliac artery that supplies the groin flap, and the deep femoral artery and the lateral circumflex femoral artery that supply the anterolateral thigh flap. Furthermore, the origin of the deep inferior epigastric artery that supplies the rectus abdominis muscle is from the femoral artery; and the popliteal artery gives off the peroneal artery nourishing the fibula ( Fig. 26.2 ).

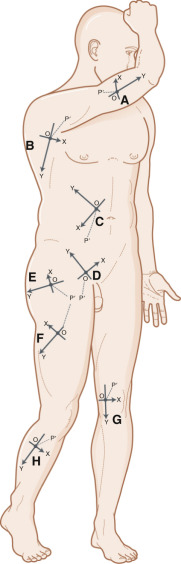

Figure 26.2


The XY plane of each specific donor site of the flap.

(A) Lateral upper arm flap. (B) Thoracodorsal artery perforator flap. (C) Deep inferior epigastric artery perforator flap. (D) Groin flap. (E) Tensor fascia lata perforator flap. (F) Anterolateral thigh flap. (G) Saphenous flap. (H) Peroneal flap.


Tailoring of the flap begins by deciding on the outline of the flap to be elevated in the X, Y, Z coordinates of the donor site by projecting the 3-dimensional relationship between the recipient defect and the relative position of the recipient vessels. If the recipient defect requires a flap with a folded structure, such as reconstruction for an oropalatolaryngeal defect, development of the structure is similarly projected to the donor site. For a successful transfer of the flap, the flap’s pedicle vessels must be kept in a natural position after transfer to the recipient bed. Tension and twisting of the anastomosed vessel should be strictly avoided.


Therefore, the 3-dimensional relationship is projected so as to adjust the expected position for anastomosis to the recipient vessel at point P. At the same time, vector OP′ should be positioned in nearly the same direction as the venous flow in the recipient vessel. As a result, the coordinates of the outline of the flap are determined. Arrangement of the recipient and donor vessels is an essential component of microsurgical tissue transfer ( Fig. 26.3 ). In particular, incorrectly arranged veins tend to kink and disrupt the outflow of blood following revascularization of the flap.

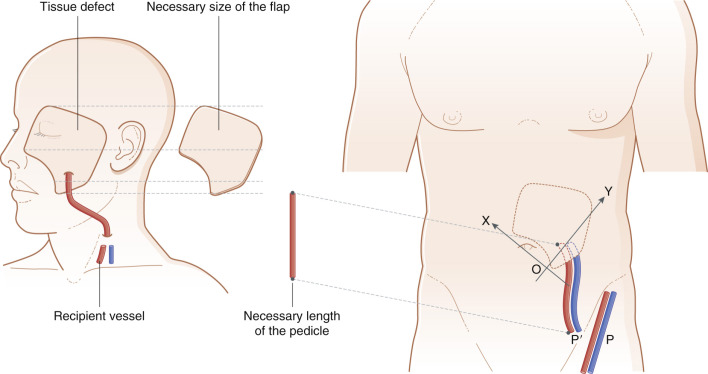

Figure 26.3


Example of flap planning (maxillofacial defect reconstructed with a rectus abdominis myocutaneous flap).

Two-dimensional outline of the necessary size of the flap is projected to the XY plane of the donor site considering the necessary length and adequate direction of the pedicle vessel.


Furthermore, it is preferable to adjust the major length of the defect to the Y-axis on the donor site, especially in the case of a large flap. If the recipient requirement obviously exceeds the surviving area based on one axial vessel, combining a neighboring region of tissue based on another axial vessel is advisable.


Pedicled Flap Reconstruction


For reconstructions using a pedicled flap, distance P′O + OY represent the ideal maximum distance of the flap transposition. However, this distance becomes shorter in the actual clinical situation. This is because twisting of the vascular pedicle results from rotation of the flap and should be limited to prevent interference with blood flow. Generally, rotating the flap 90° or less does not obstruct the vascular lumen.


If the angle of rotation exceeds 90°, the pedicle of the flap should be positioned to form an arc in order to avoid a harmful twist. However, this move shortens the arc of rotation ( Fig. 26.4 ). Therefore, the flap should be made longer to compensate for loss of pedicle length created by forming an arc.

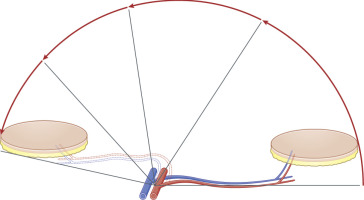

Figure 26.4


Theoretical distance of flap transposition on condition that the junction of the pedicle is fixed.




Thinning of the Flap


Another kind of flap tailoring is performed along the Z-axis of the flap. It is frequently found that part of the flap needs volume reduction or the entire flap should be made as thin as possible


There are two approaches for removing excess adipose tissue from a skin flap while preserving adequate circulation. A thinning method that is regarded as conventional is performed by secondary removal (in a subsequent procedure) of adipose tissue after elevating a full-thickness skin flap above the deep fascia. In this procedure, the location of the vascular pedicle is predicted, and removal of adipose tissue is limited to the area with the least expected vessel distribution. Therefore, this is something of a blind procedure in the strict sense and can sometimes jeopardize flap circulation. However, most flaps are thinned using this method, as the procedure is easy to perform. In contrast, adipose tissue surrounding areas with a predicted high vascular density cannot be removed by this method. Consequently, a small amount of excess adipose tissue inevitably remains in this type of flap thinning ( Fig. 26.5 ).




Figure 26.5


Conventional thin flap.

A small amount of the adipose tissue around the pedicle vessels cannot be removed.


Another method of thinning is performed by the microdissection procedure. Microdissection represents the dissection of the blood vessels within the adipose layer under operative microscopic magnification, and, through this technique, vessel distribution in the adipose layer of the flap can be directly identified. In addition to identification of the blood vessels within the adipose layer, the adipose tissue surrounding the vessel is removed simultaneously by using the microdissection technique. The flap is elevated in a one-step procedure without damaging the blood vessels that traverse the adipose layer. It should be noted that the microdissected thin flap is not fabricated by thinning after elevating the full-thickness flap, but is elevated directly from the donor site after the microdissection ( Fig. 26.6 ).




Figure 26.6


Microdissected thin flap.

Minimal adipose tissue is observed around the bifurcation of the perforator vessel, and a considerable amount of the adipose tissue remains on the donor site.


Before the development of microdissection, there were some reports of indirect investigation of the vascular distribution in the adipose layer. These studies revealed that the main vessel of the skin flap gives off some branches in the middle of the adipose layer and these branches are distributed into the subdermal network of the skin. However, microdissection enables the vascular distribution in the adipose layer to be observed directly. Based on the considerable number of observations from microdissection, the main vessel nourishing the flap gives off some branches in the adipose layer, and these branched vessels also have sufficient thickness to tolerate the microsurgical manipulations.


Moreover, if only the microdissected vessels in the adipose layer are preserved, a wide flap can be safely transferred without excess adipose tissue. In the following section, the specific technique of microdissection is described.


Microdissection


The blood circulation of most skin flaps is supplied from a small bundle of axial vessels that penetrate the deep fascia at the hiatus from the inside, which is represented as origin O on Figure 26.1 . Accordingly, dissection above the deep fascia and detection of these vascular bundles constitute the first procedure needed to prepare the microdissected thin flap. This procedure is common to both the “perforator” and “non-perforator” flaps. The only difference between these two kinds of flaps is the tissue through which the vessels traverse before penetrating the deep fascia.


This small vascular bundle consists of an artery and one or two veins surrounded by connective tissue and a small amount of adipose tissue. The bundle thickness usually is approximately 2–3 mm at the hiatus of the deep fascia ( Fig. 26.7 ). This thin vascular bundle gives off several branches and supplies blood to the subdermal vascular network of the thin flap. Usually, this vascular bundle is identified preoperatively using a Doppler probe; however, the correct insertion points of branches into the thin layer of the flap are sometimes far from the point of initial detection and are not identified precisely until completion of the microdissection.
