Clinical picture (stable)
Interest in penetrating trauma
Time of thoracoscopy
Diagnosis or Treatment
Indication
Position
Significant hemothorax or continuous bleeding
+
Immediate
Diagnosis: source of the bleeding, complete exploration
Discussed, careful
Supine
Treatment: evacuation of clotted hemothorax, hemostasis
Residual hemothorax
+
Delayed (third, seventh day)
Treatment
Well admitted
Lateral decubitus
Persistent pneumothorax, air leak
+
Delayed (third day)
Treatment
Well admitted
Lateral decubitus
Suspicion of diaphragmatic injury
++ (wound under the nipple horizontal line)
Immediate
Diagnosis
Well admitted
Supine
Treatment (sometimes)
Suspicion of hemopericardium
++ (wound in the “cardiac box”)
Immediate
Diagnosis (conversion if hemopericardium)
Discussed, careful
Supine
Post-traumatic empyema
++
Delayed
Treatment
Well admitted
Lateral decubitus
Foreign body
++
Immediate
Treatment
Admitted
Supine or lateral decubitus
Delayed
Chylothorax
+
Delayed
Treatment
Admitted, rare
Lateral decubitus
Immediate (immediately or within a couple of hours following the wound):
Significant hemothorax (>1 or 1.5 L at chest tube insertion).
Continuous bleeding (>300 cc/h within the first 3 h after chest tube insertion).
Suspected diaphragmatic injury (quite probable when the entrance wound is inferior to the nipple line).
Suspicion of a penetrating heart wound (stable patients with penetrating injuries in cardiac proximity and doubtful pericardial ultrasound examination). The procedure aims at ruling out any pericardium or heart wound, which can decompensate at any time.
Withdrawal of a stab in situ under direct vision.
Delayed (up to several days after the trauma) in case of:
Retained or clotted hemothorax. The goals of VATS in the management of these retained collections are (1) evacuation and culture of the collection, (2) release of the trapped lung with decortication, and (3) drainage of the chest cavity and lung re-expansion.
Prolonged air leak and/or recurrent pneumothorax.
Secondary empyema (often secondary to an incompletely drained hemothorax).
Chylothorax.
Foreign-body extraction such as bullets, wires, etc. It should be discussed depending on the proximity of the vascular structures and on the predictable operative difficulties.
21.2 Technique of Immediate VATS for Penetrating Trauma
The aim of the treatment is twofold: (1) to inspect and accurately diagnose the injuries (hemothorax, chest wall, lung, diaphragm, pericardium) and (2) to proceed accordingly, evacuating a hemothorax, ensuring hemostasis, suturing a diaphragmatic defect, treating a pulmonary lesion, etc. The extent of the lesions and the operator’s expertise will decide whether to hold on to VATS or convert to open thoracotomy.
21.2.1 Anesthesia
General anesthesia using a double-lumen endotracheal tube is recommended in order to facilitate the ipsilateral lung collapse and optimize the view in the thoracic cavity. When selective endotracheal intubation fails, the exploration is made much more difficult, and most of the time, you should better convert to an open thoracotomy.
21.3 Positioning of Patient
Penetrating chest injuries may involve various organs; some of them are best dealt with by laparotomy (abdominal viscus), sternotomy, or thoracotomy (heart, contralateral hemithorax, massive bleeding). Patient positioning is therefore paramount in view of a possible thoracic, abdominal extension, and more therapeutic options.
The lateral decubitus position is the easiest approach to perform VATS, but as laparotomy or sternotomy requires different patient positioning, the surgeon should eliminate diaphragmatic or pericardiac lesions before. In practice, we mainly recommend lateral position for delayed thoracoscopic exploration.
The supine position (Fig. 21.1) makes the VATS slightly more difficult, but this setting allows accesses in all directions as and when required. Elevate the injured chest with a cushion, with the arm folded over the head. If necessary, tilt the operating table up to 30° in order to improve the exposure. Should you need to proceed through a sternotomy or a laparotomy, you just have to remove the cushion and replace the arm in abduction.

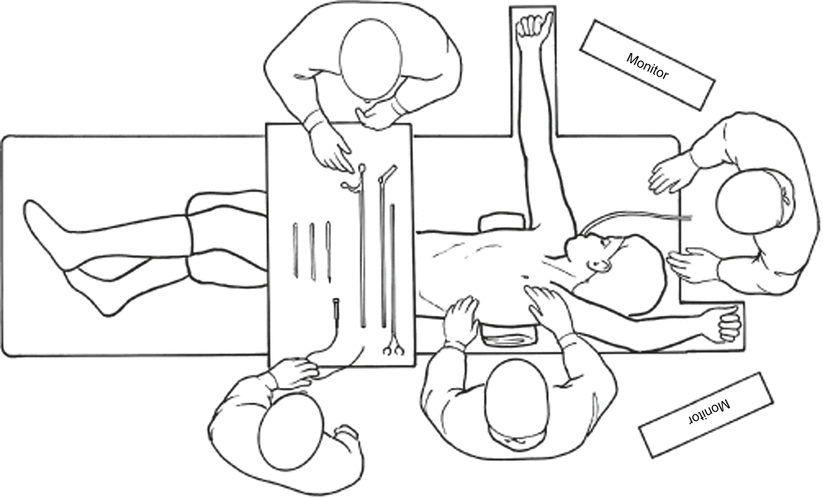

Fig. 21.1
Team allocation and port positions
21.4 Setup and Equipment
The operator stands at the site of the injured chest, his assistant next to him, and the scrub nurse facing him. Formal thoracotomy instruments are prepared and available on an auxiliary table.
The equipment is as follows:
Two or three trocars (10 mm, sometimes 5 mm), one 10 mm 0° optical (a 30° optical may facilitate the visualization of chest wall lesions), one irrigation-suction cannula, bipolar diathermy forceps, coagulating scissors, lung grasping forceps (Duval type = endoscopic or open surgery forceps), and endostaplers Ethicon® or Covidien®, straight or articulated with purple reloads
21.5 Operative Technique
A large hemothorax should ideally be drained before general anesthesia. The tube is then removed just before the procedure.
21.6 Port Sites
Use 10 mm ports as it allows you to swap the optical from one site to another.
Avoid placing the first port in the wound as it may reactivate bleeding.
The first port site depends on the place of the wound; in most cases, you should place the first port at the level of the inferior angle of the scapula, posterior to the midaxillary line around the fifth intercostal space. It may then be necessary to aspirate blood pouring throughout the port before inserting the optical if the thorax has not been drained before. The inspection immediately focuses on the internal orifice(s) of the chest wound and on adjacent lung lesions. A second port should rapidly follow, either through the seventh or eighth intercostal space, the previous drain orifice, or through the wound itself (Fig. 21.1). Drain the hemothorax under direct vision, swapping instruments if necessary to achieve a systematic and meticulous inspection. A third port disposed in an appropriate triangulation will allow the insertion of a retractor or forceps and careful mobilization of the lung.Stay updated, free articles. Join our Telegram channel
